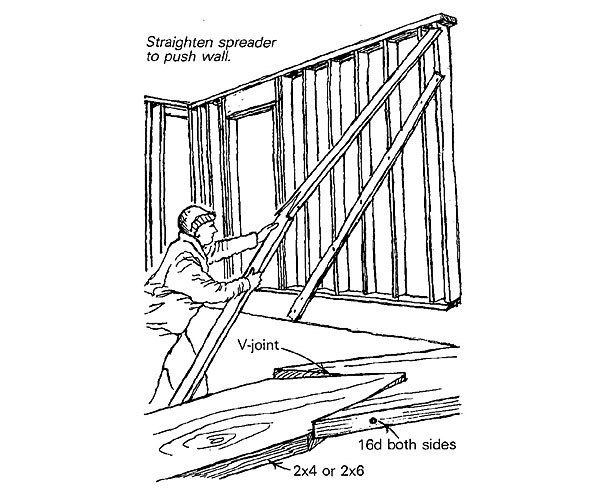

Often during framing we need to align a studwall to bring it plumb. Long interior walls or unsheathed exterior frames normally need slight adjustments, and trying to muscle them by hand doesn’t always work very well. Faced with this situation, we use our spreader. It is simply two lengths of 2×4 or 2×6 assembled at midpoint by way of a V-joint, as shown in the drawing. The two pieces are attached with a pair of 16d common nails, driven in line with one another allowing the pieces to rotate freely.
To find the correct length 2x for a spreader, measure from the top plate at the wall’s end to the subfloor or ground at about a 30° angle. Standard 8-ft. walls need a spreader about 10 ft. long. Wedge one end of the spreader against the top plate. With a slight upward bend in the spreader, wedge its lower end against a block or a stake. Then simply apply slight downward pressure at the V-joint, and the top of the wall will move away from you with ease. Remember: the spreader is for making slight adjustments, not major ones.
—Stephen Major, Homer, NY
Edited and illustrated by Charles Miller
From Fine Homebuilding #64
