FMS90 Framing Nailer Review

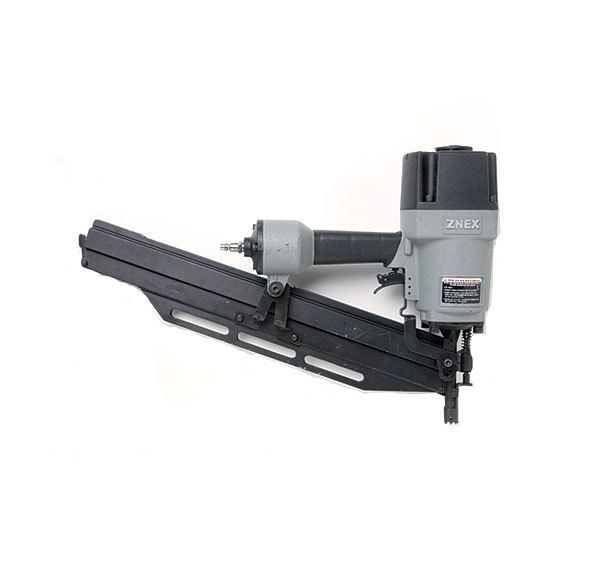

This framing nailer from ZNEX has a switch for shifting between bounce firing and single-shot firing that is a wire clip on the trigger

By Rick Arnold, Mike Guertin

This stick nailer has a switch for shifting between bounce firing and single-shot firing that is a wire clip on the trigger. Bounce firing was sluggish. Depth is adjusted easily with a thumbscrew.

×

Editor Test Results:

Overall RatingN/A
Driving PowerB (based on driving into LVLs)

Manufacturer Specifications:

ManufacturerSenco
Manufacturer's Web Sitewww.senco.com
Manufacturer's Phone Number800-543-4596
Weight8 lb. 7.8 oz.
Dimensions14-3/4 in. by 21-1/2 in.
Nail Sizes2 in. to 3-1/2 in.
Nail Capacity50 to 75
Nail Type0.113-in. to 0.162-in. full round-head
Safety GuardN/A
Special FeaturesAdjustable air deflector
Triggering ConfigurationBounce/single
Triggering ConfigurationBounce/single
