Tools & Materials

Better basement insulation

InSoFast insulation panels simplify the process of installing insulation

By Mike Guertin Issue 204
  • X
  • facebook
  • linkedin
  • pinterest
  • email
  • add to favorites Log in or Sign up to save your favorite articles

• Manufactured by InSoFast
• 888-501-7899; www.insofast.com
• Cost: $1.55 to $1.90 per sq. ft.

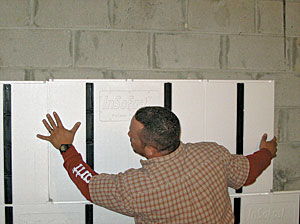

For a number of years, I’ve finished below-grade basements by installing sheets of 2-in.-thick foam on the walls, taping the joints to make the assembly airtight, then framing a stud wall on the inside to which I attached drywall. InSoFast speeds up and simplifies the process.

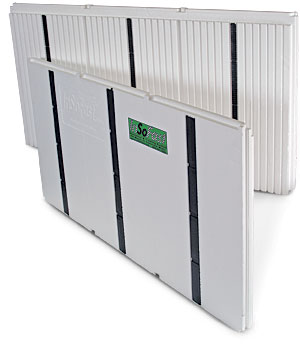

The back side of each 2-ft. by 4-ft. by 2-in.-thick expanded-polystyrene (EPS) panel has vertical channels for water drainage and horizontal channels so that you can snake electrical wiring after the panel is in place. The tongue-and-groove edges of each panel also interlock so that you can gang together whole wall sections flat on the floor, tilt them into place, and adhere them to the foundation walls with foam-board adhesive. Paperless drywall is then attached directly to the integral fastening strips; there’s no need to frame a stud wall. The result is a 21.2-in.-thick wall insulated to R-10.

Photo by: Krysta S. Doerfler
Photo by: InSoFast

The system relies on fairly plumb and flat foundation walls, but bulges and uneven spots up to 1.2 in. can be accommodated by carving out the back of the panels or by filling voids with expanding foam after panels are erected. However, bulk-water problems should be addressed before installation.

InSoFast panels also can be used to insulate concrete slabs beneath a flooring system. Subfloor sheets can be laid atop the panels and screwed into the fastening strips to create a floating insulated base for carpet, wood, or laminate flooring.

InSoFast retails for about 30% to 40% more than the cost of the foam, studs, and plates needed to insulate and frame basement walls the way I’ve been doing it. But these panels save on labor, so the total cost of finished basement walls is either a wash or slightly less with InSoFast.

Fine Homebuilding Recommended Products

Fine Homebuilding receives a commission for items purchased through links on this site, including Amazon Associates and other affiliate advertising programs.

Utility Knife

This utility knife is well-made and comes in handy when cutting rigid foam insulation. You can extend the snap blade to cut through a 2-inch foam board.
Buy at Amazon

Foam Gun

We like using a professional foam-dispensing gun as opposed to straw cans because it allows you to easily control bead size and reuse the can.
Buy at Amazon

Insulation Knife

If you like insulating with mineral wool, this knife makes cuts that are clean, neat, and easy — it's much better than a utility knife which can be slow and messy.
Buy at Amazon

Sign up for eletters today and get the latest how-to from Fine Homebuilding, plus special offers.

Signing you up...

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
See all newsletters
See all newsletters
×

Get home building tips, offers, and expert advice in your inbox

Signing you up...

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
See all newsletters
See all newsletters

New Feature

Fine Homebuilding Forums

Ask questions, offer advice, and share your work

  • X
  • facebook
  • linkedin
  • pinterest
  • email
  • add to favorites Log in or Sign up to save your favorite articles

View Comments

  1. mlefke | Mar 15, 2018 04:40pm | #1

    Not just for basements... I have a 1960 brick on block ranch house and used this to insulate the first floor walls.
