Asphalt-Shingle Cutting Guide

This simple hinged jig makes cutting shingles for roof valleys a lot easier.

By Chuck Miller
  • X
  • facebook
  • linkedin
  • pinterest
  • email
  • add to favorites Log in or Sign up to save your favorite articles
Video Player is loading.
Current Time 0:00
/
Duration 0:00
Loaded: 0%
Stream Type LIVE
Remaining Time -0:00

1x
    • Chapters
    • descriptions off, selected
    • captions settings, opens captions settings dialog
    • captions off, selected

      This is a modal window.

      Beginning of dialog window. Escape will cancel and close the window.

      Text
      Background
      Window
      Font Size
      Text Edge Style
      Font Family

      End of dialog window.

      This is a modal window. This modal can be closed by pressing the Escape key or activating the close button.

      This is a modal window. This modal can be closed by pressing the Escape key or activating the close button.

      Don Mathis of Macomb, Illinois writes:

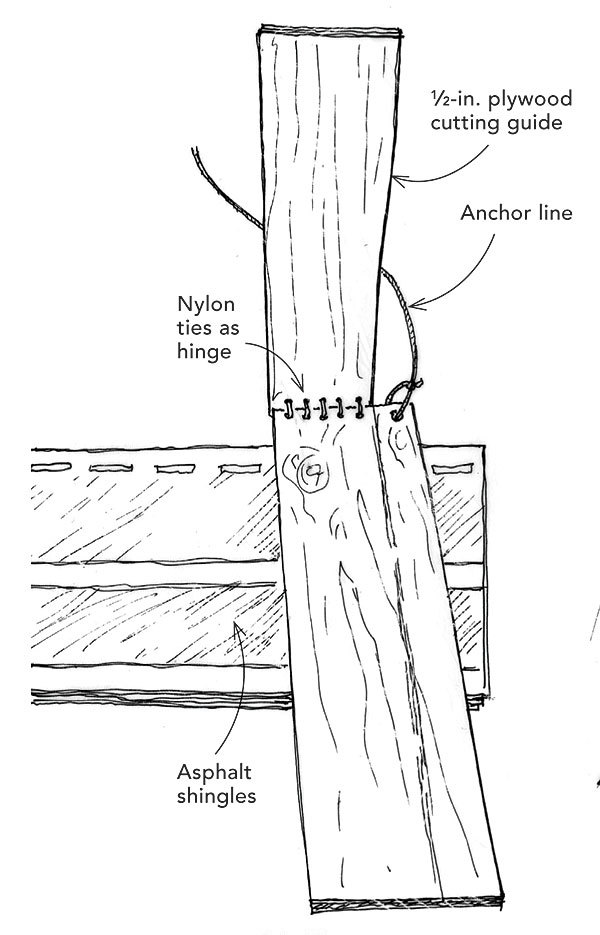

      Here is a little jig I made for cutting asphalt shingles for cut roof valleys. It consists of two strips of 1/2-in. plywood, one wider that the other. I drilled a series of holes in the ends of the plywood and made a hinge from some plastic cable ties. That’s it.

      To use the guide, I slip an upside-down shingle between the two pieces of plywood, align my layout marks along the edge of the upper layer, and use a utility knife held against the guide’s edge to make my cut.

      I use the wire anchor line at the top of the guide to tie it to a scaffold plank to keep the guide form sliding off the roof.

      roof shingle cutting guide

      Previous: Choosing Metal-Cutting Snips Next: Roof Sheathing Rack

      Guide

      Roofing

      Chapter

      Tools and Materials

      Sign up for eletters today and get the latest how-to from Fine Homebuilding, plus special offers.

      Signing you up...

      This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
      See all newsletters
      See all newsletters

      View Comments

      1. JoshRountree | Jan 12, 2010 09:44am | #1

        I bet that would work very well for fiberglass insulation too!

      2. Shep | Jan 18, 2010 04:34pm | #2

        I said this at BT when I first saw that tip in FHB magazine- if you can't cut a reasonably straight line freehand, or using the back edge of a shingle, you shouldn't be doing roofing. If you're shingling a valley, run the shingles long, snap a line where you want to cut, and use a hook knife to cut the shingles.

      3. Araltan_Mandzhiev | Jun 17, 2013 06:18am | #3

        I was shingling my shed yesterday and I was cutting the shingles by hand using a hook blade in a 3 bucks utility knife. At first I was scratching a guiding line using another shingle (later a Swanson speed square) and a knife. Than I was holding the shingle with one hand and cutting it with another. It is good that I don't have to make and use any jigs. But it is pretty tiring after awhile to pull the blade through the shingle. And the hook blade gets dull pretty quickly so you have to replace it periodically or you'll rip the shingle. Now I am looking for another easier way to cut shingles.
