Variable Outfeed Pipe Support
Elevate your pipe-cutting precision with this DIY variable outfeed support.

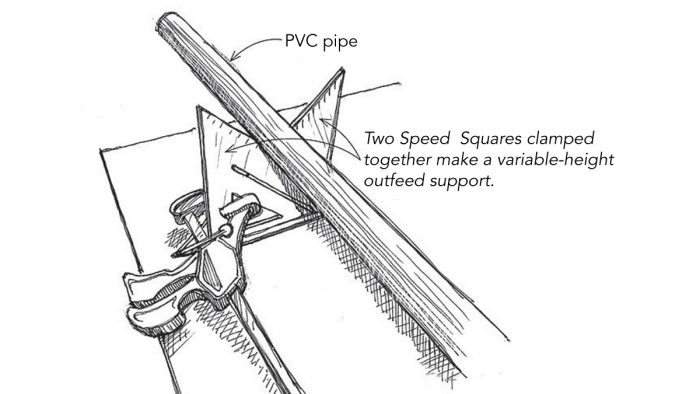

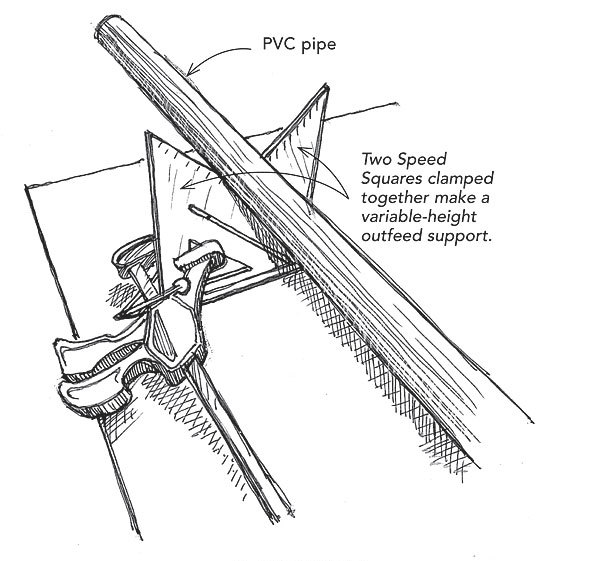

I had to cut some PVC pipe to length with a chopsaw, and I needed some pipe support at the far end of the pipe at a height equal to the saw’s table. I could have cobbled together a stack of wooden blocks, but I wanted to do something a little less crude. As shown in the drawing below, I clamped together a couple of Speed Squares to form a V that cradles the end of the pipe. Sliding one square against the other gave a precise height adjustment, and the clamp bar provided a support to keep the V in position.
— Larry Chace, Ithaca, NY
From Fine Homebuilding #225
