The Construction of a Water Wheel
Browse the photos above to get a behind-the-scenes look at the construction process of the 11-1/2-ft.-dia., 1500-lb. water wheel that was featured in Finishing Touch from Fine Homebuilding #248.
Read the full story: Wonder Wheel by the Water
Fine Homebuilding Recommended Products
Fine Homebuilding receives a commission for items purchased through links on this site, including Amazon Associates and other affiliate advertising programs.
Affordable IR Camera
This camera is super useful for tracking down air leaks in buildings. The one-hand pistol grip arrangement frees your other hand for steadying yourself while maneuvering tricky job sites.
8067 All-Weather Flashing Tape
Available in 2- to 12-in. widths, this is a good general-purpose flashing tape that sticks well to most things. It features a two-piece release paper, water-shedding layers, and good UV resistance.
Reliable Crimp Connectors
These reliable, high-quality connectors from Wirefy work on 10-22-gauge wire have heat-shrink insulation to keep out water and road salt.
-

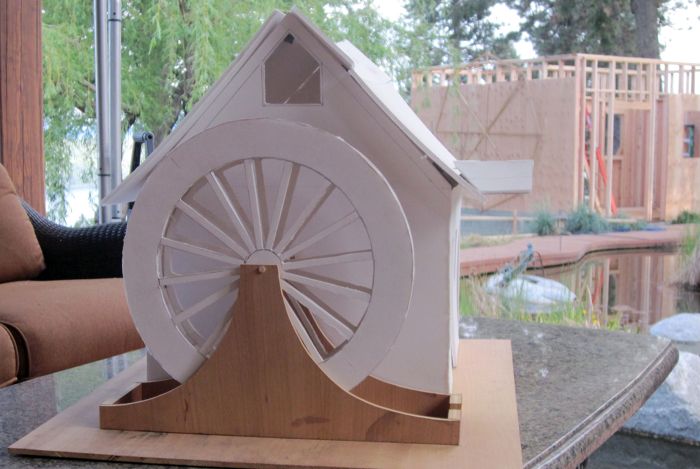

Before beginning construction, Ray Baytos built a scale model of the project.
-

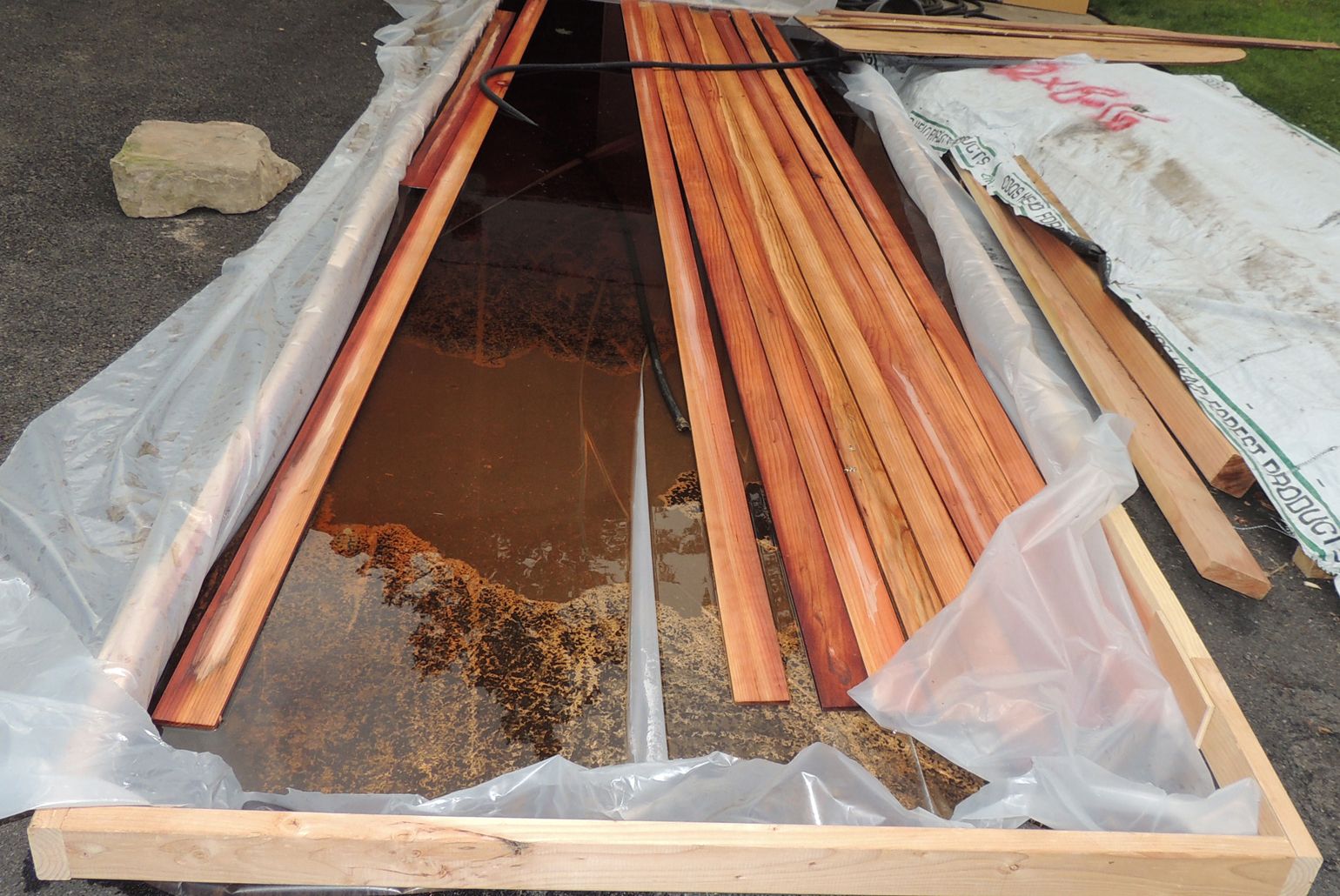

Redwood strips used to form the wheel were softened in a water bath.
-

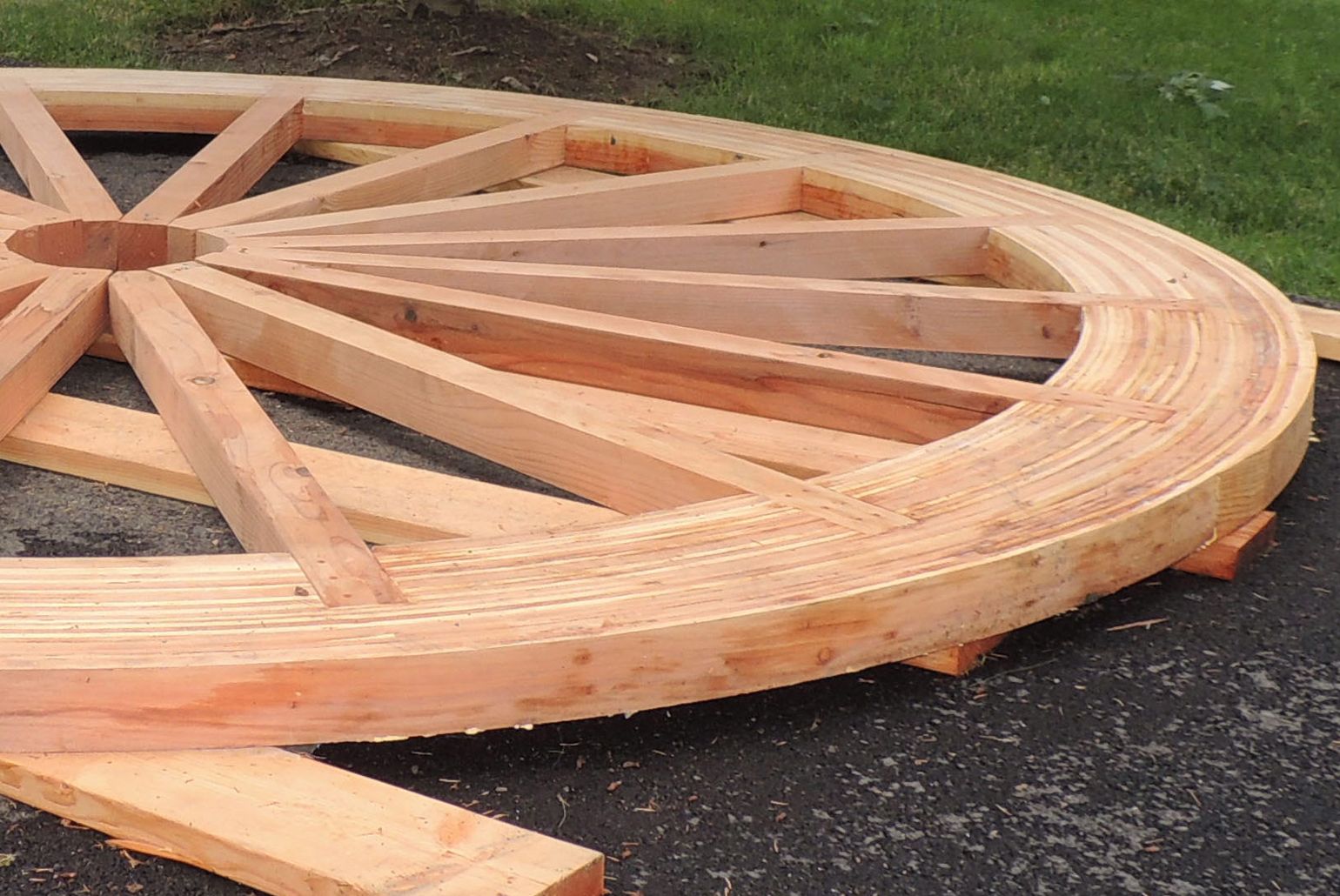

After Baytos bent the softened redwood, he used clamps, Gorilla glue, and stainless-steel staples to create the wheel rims.
-

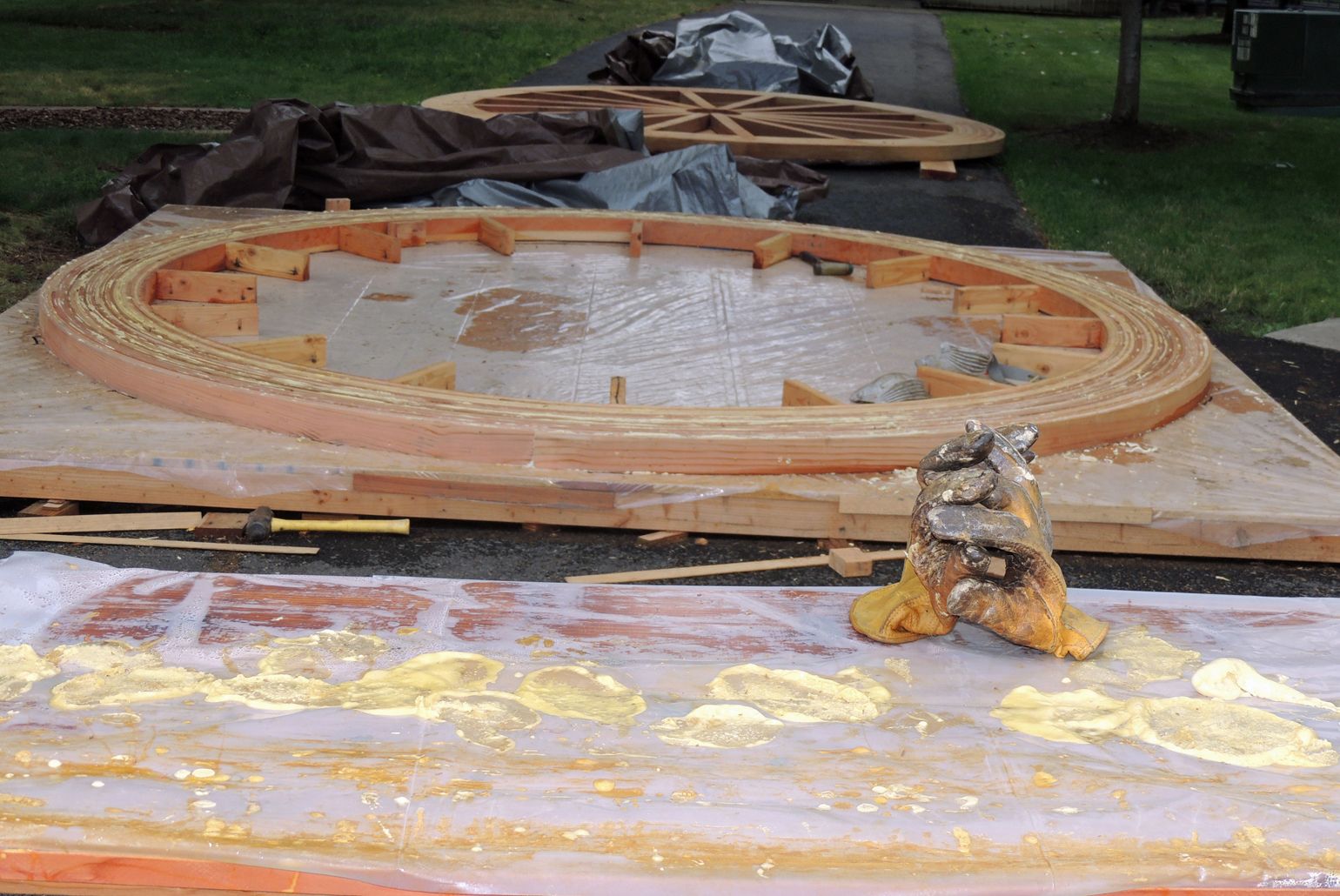

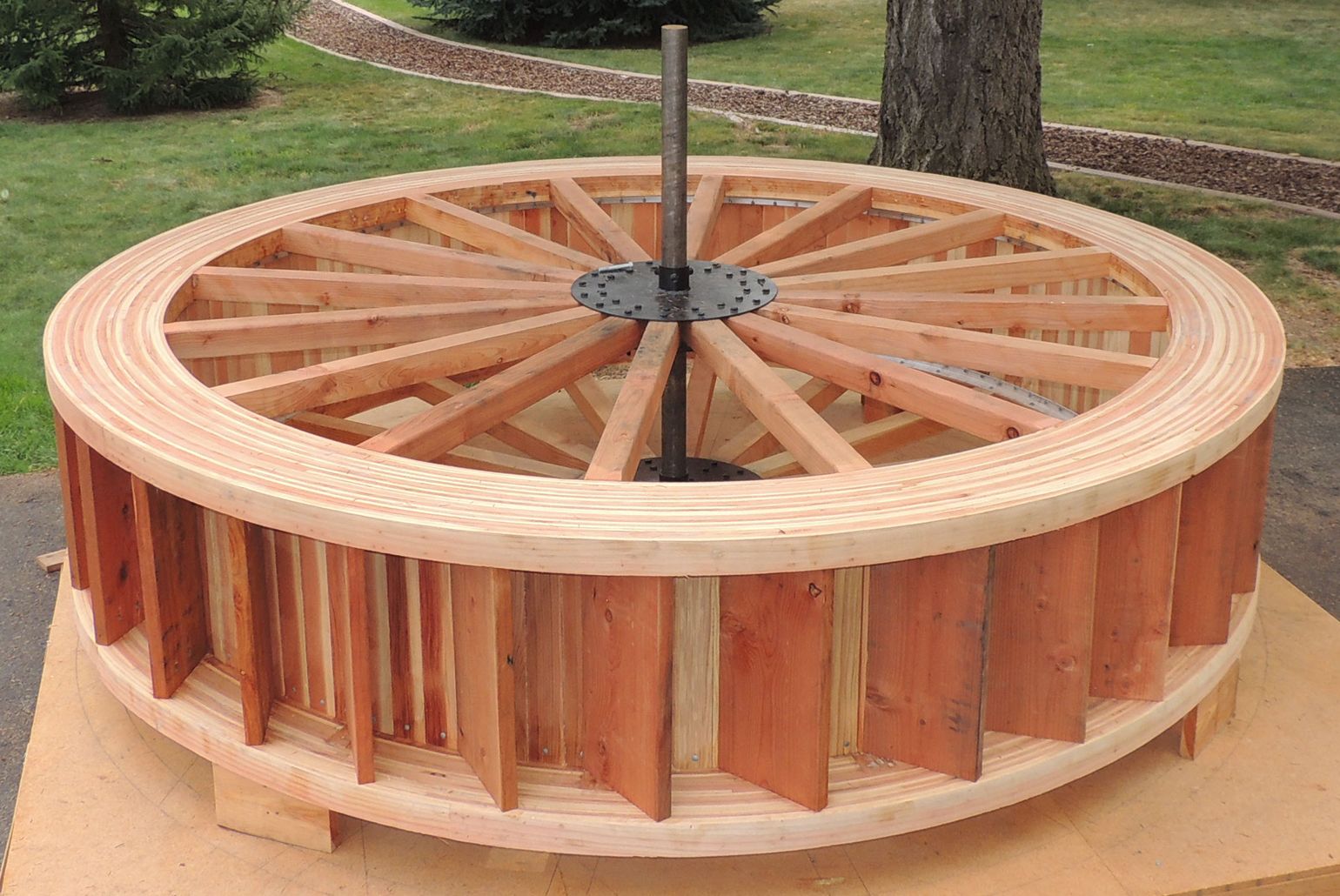

Baytos used 2 gal. of Gorilla glue and 10,000 staples to construct the wheel.
-
