Pitch Block for Stair Stringers
An alternative method for laying out stairs without a framing square.

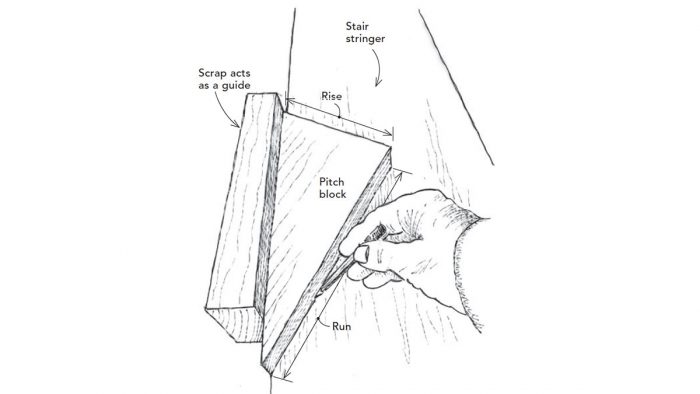

What do you do when you have to lay out a set of stairs, but your framing square is 45 minutes away at the shop? Make a pitch block matching your rise and run using some scrap lumber and a combination square, rafter square, or tape measure to lay out the angle cut. Then screw it to a scrap that acts as a fence, and when your coworkers ask, pretend that’s how you always lay out stairs.
Click here to enlarge the illustration
—Andy Engel, Roxbury, Conn.
Edited and illustrated by Charles Miller
From Fine Homebuilding #289
