Just shipped ten of these off to the home of Rice-a-Roni today. Duane made the carcases for me. These were a bit of a challenge since they were so small and because of the reverse curves. Here’s one with the lovers and face plate installed sitting on the base:
The top is then clamped off. I used Sketchup to lay out the top. Cut a cardboard template and test fit it a couple of times until I got it right before cutting any copper.

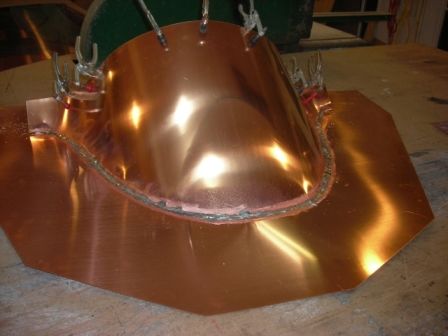

Here’s a view from the back, fluxed and ready to solder:

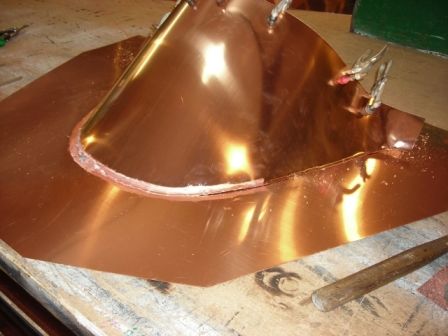

and soldered:

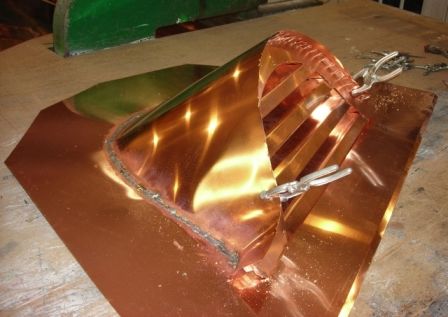

front view:
Here’s a view from the bottom – I flange the perimeter of the hole upward in case some water gets in somewhere – it’ll be directed back out under the bottom louver.

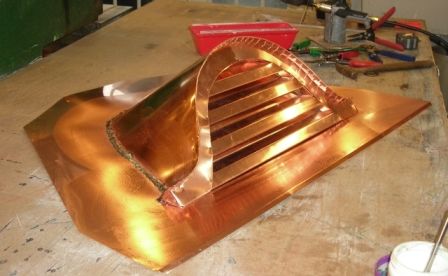

And here’s the finished product with the top flanged tight:
