I am considering buying some door hanging equipment and I want a hinge jig that is accurate, will move from the door leaf to the door frame(jamb) and not shift or move around on me, will work equally well on installing new doors or installing a new leaf into an existing frame. Need some help on what brand to purchase.
Learn how the pros keep their hand tools sharp without breaking the bank.
"I have learned so much thanks to the searchable articles on the FHB website. I can confidently say that I expect to be a life-long subscriber." - M.K.
Dig into cutting-edge approaches and decades of proven solutions with total access to our experts and tradespeople.
Start Free Trial NowGet instant access to the latest developments in green building, research, and reports from the field.
Start Free Trial Now
Replies
I cut my teeth on the Rockwell (now Porter-Cable) jig back in the 70s, and have owned my own for almost 30 years. It works well, but there are things I don't like about it:
The length-adjustments on the arms work well when snapped into place at the presets, but are hard to tighten down enough to avoid slipping on odd settings, when matching up to existing mortises, for instance. It's like a lot of miter saws: great at the detents, but try to cut 89 degrees, and good luck.
These odd settings have to withstand being removed from the door or jamb by prying the template nails loose, then being reattached to the other piece. Often the jig is leaned up in a corner between routings, and if not done really gently, the jig is tapped out of alignment when it hits the floor.
Also, make sure that the design is remodel-friendly. The Rockwell/PC jig has optional blocks which fit snuggly into an existing mortise, and screw to the edge of the jig. Holding each individual block in its mortise while you tighten down the knobs is really a two-person job, though.
So I milled hardwood blocks that fit the oversize jig snuggly on one side, and are rabetted to fit into the existing hinge mortise on the other. I pre-drilled them to screw them into the existing mortises (offset your holes from the hinge pattern!). I made them thick enough so that I can hang each template on its block and then tighten down all of the knobs. Much better.
Stanley Power Tools used to make a good jig, but I think it went out of production when they got bought out by Bosch in the early 80s.
AitchKay
I agree with AitchKay, the PC or the Bosch metal templates can be adjusted but are easily bumped out of alignment on odd spacing retrofits. Premade, or shopmade plywood templates cant be knocked out of alignment, but also cant be adjusted. If you use the plywood on a retrofit that doesn't line up correctly you can fill the existing mortises with Wood Epox or Bondo then use the template, as long as its paint grade. If you have a lot of retrofits with the same spacing, you could make a custom ply template.
Greetings and Welcome to BT!
This newer model was recently discussed here with several favorable comments from those who own it. Using a story pole to mark hinge locations, the template becomes a very simple alternative to the three hinge version. It's about $30 at HD or from Amazon.
I have a three hinge template but I'll buy one of these the next time I need to cut mortises for hinges, just because there's no time lost, setting it up.
http://www.deltaportercable.com/Products/AccessoriesDetail.aspx?ProductID=16391
What Hudson Valley Carpenter said......View Image
I have the porter -cable version (cheaper looking -Home Depot) It works for me for the
rare times that i need i ; custom 8 ft. doors. But I really cannot justify a metal jig.
But I have been called a tool addict.
I got this one as a B-Day gift and just used it last week on a replacement door mounting. It and the latch mortise templates both worked easily and perfectly. Much better than some of the others I have used.Never fear the want of business. A man who qualifies himself well for his calling, never fails of employment.
Thomas Jefferson
3rd president of US (1743 - 1826)
Glad to hear that you got a neat new tool on that special occasion. Thanks for confirming that both of them are worth owning.
I learned how to do both those jobs with basic hand tools, self taught in fact, so I' really looking forward to having both of those jigs among my tools.
I have a Bosch jig and it is great for prehanging new doors in new jambs. It is miserable for matching existing hinge spacing such as when hanging a new door in an existing jamb, unless you get lucky and the spacing matches exactly. For that you need an individual hinge template. I have used Templaco stuff and it is fine although not heavy-duty IMO.
I have used the Bosch for years.
I recently had to retrofit 8 interior doors to existing mortices....yuck. But I developed a gauge block that allowed me to line up the individual templates with the existing mortices. It worked perfectly, with less than 1/16th room for error. I'd do it that way again if I had to. (it was the length of the hinge template that I was using less an 1/8th. It allowed me to perfectly line up the 3 templates.)"The nearest thing to eternal life we will ever see on this earth is a governmental program" -Ronald Reagan
I have done the same, but the real issue is when the hinge spacing is not compatible with the bars in the Bosch kit that join the templates together. On several occasions I have used just one of the templates from the kit individually, but I've always felt that they should have designed the bars to allow a wider range of spacing.
In my next life I'll invent such a thing.
understood. I agree. Fortunately, I've not had to deal with spacing that bad."The nearest thing to eternal life we will ever see on this earth is a governmental program" -Ronald Reagan
I have my pops older Rockwell boring jig that works fine if your in need of a locket boring jig.
ML
Thanks for the input.These tips have given me some ideas and somewhere to start. I'll be back with more questions later
i have the porter cable... i have the bosch... i have a craftsman set thats 40yrs old...
and i have never enjoyed use'n or set'n up any of them... i hung 12 8ft doors last week use'n the porter cable one that the link was shown to... easy & fast... i usually dread match'n up hinges... some of these door were already mortised some weren't no 2 were exactly the same but all had 4 four inch hinges... i got every hinge within 1/32nd I actually enjoyed do'n it... if you can read a tape measure then you won't have problems... when i first posted about this it was recomended to me to get a carbide bit to replace the HSS one that come with it... I took that advice so for less than $40 i have a tool that i can see use'n for years... that in my minds eye paid for itself on the first door...
p
Got spares?
Backups in case you forget?
Over the years I have accumulated a few. For retrofit they are more trouble then they are worth.
I free hand most material removal with a mortise bit in a laminate trimmer then fine tune with chisel and razor knife. Not counting fitting the door... just mortising hinges... I can average 1 in about 5 minutes, not worth fooling around with a jig.
I have 2 PC's myself, always wondered why I did, oh I bought the second cause I couldn't find the first, now I know where they both are.>G<
i saw pc has the one just like it for the latch/strike haven't pulled that trigger yet...
i never liked any of my 3-4 hinge template setups... too many small knobs set screws and since 90% of my stuff is reuse'n something to making something do.... it was never intended to do... never had that comfort level... so i'd mark em out and freehand em then clean em up.... 10x the time of the little PC jig... i use to wait til last to mortis my hinges... now i just knock em out like i know what i'm doing...
p
I have the Milwaukee, I think it is the same as the Bosch. These three-gang setups are really only worth the setup time to use them for multiple new doors/jambs. I've bought the plastic PC ones now and again and like 'em just fine, perfect for retrofits. You can nick/gouge them a little and just bondo to fix. Sooner or later I break or chew 'em up bad enough to have to replace.
sledgehammer.
I bought my PC for 2 doors! (I'll use it on other doors as well but that's not terribly important)
The reason I bought mine is to keep perfect alignment of the hinges.. I have extremely heavy doors to hang. (It takes two of us to carry one door and we struggle) I need 6 ball bearings 4 inch hinges per door and if a hinge is slightly misaligned it makes the door bind as it swings.
That binding causes the hinge to work on the mount and will eventually pull out.
Before installing I'll knock out the pins and using one shaft to perfectly line up the hinges with each other make absolutely sure that everything is dead nuts right on..
On the plus side nobodies gonna knock down these babies!
That's just dandy, I personally can't remember the last house I was in that had a door that required 2 people to carry. Apparently you and I specialized in different directions.
2 guys to hang a door with 6 hinges isn't common in these parts. Glad the investment worked out so well for you.Which template did you spring for that does 6 hinges?
Edited 8/27/2008 9:39 pm ET by sledgehammer
Edited 8/27/2008 9:55 pm ET by sledgehammer
Man, so much tension here!

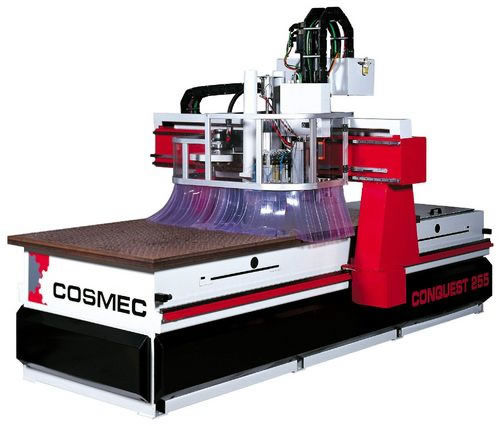

OK, this is what I use. It costs $42,000.00 dollars and can mortise 3 hinges on one door in a half an hour. It's paid for itself many times over. You guys.......
