I’m designing a curbless shower in a tiny bathroom for a client and would like to use Schluter’s Kerdi-Line low profile linear floor drain. Problem: I can only achieve a slope of 1-5/8″ as the shower width is only 38-3/8″. Does this give me enough drainage slope? Or should I consider droping the floor of the shower? Any advice will be very appreciated!
Lighting up an exterior isn't just about ambiance— it's also about code compliance. Here is what the code says about safety and efficiency when it comes to outdoor lighting.
"I have learned so much thanks to the searchable articles on the FHB website. I can confidently say that I expect to be a life-long subscriber." - M.K.
Dig into cutting-edge approaches and decades of proven solutions with total access to our experts and tradespeople.
Start Free Trial NowGet instant access to the latest developments in green building, research, and reports from the field.
Start Free Trial Now
Replies
first things first
IMO comfort and utility come before feasability or durability. I can tell from your section elevation that the shower your designing is going to be very uncomfortable to stand in. I think you should consider other options.
Floor Slope for Small Shower
Thanks Deadnuts. It's definitely a challenging space. Appreciate the reply.
1/4" to the foot is plenty of
1/4" to the foot is plenty of slope for a shower floor, so long as you keep it reasonably flat so there are no pools. You want to keep slope to a minimum for standing comfort.
Floor Slope for Small Shower
Thanks Dan H. I'll make that change. Appreciate the reply.
There was a recent article in FHB where a guy used teak or some such wood over a sloped shower floor. Looked pretty cool (asian inspired). Not sure if your aesthetic can handle that, but it's an option if you decide you need a more severe slope.
https://www.finehomebuilding.com/item/31653/a-bath-where-east-meets-west
Floor Slope for Small Shower
That's beautiful! It's not this client's aesthetic but I'll bookmark it as an idea for future clients. Really cool. Thanks for the reply!
I agree that 1/2'' per ft is plenty, i would more than likely opt for less slope on such a tight space.
Floor Slope for Small Shower
Thanks Mark122. It's good to have confirmation. I do think I'll opt for 1/4" per foot. Appreciate the reply.
Can you mud the whole thing?
In addition to the requirement that the slope be between 1/4" and 1/2" per foot, there is a code requirement for you to have a 2" minimum vertical between the curb and the shower drain.
For curbless, you're sort of in a pickle. With linear drains, you can sometimes get an exception from your AHJ from the 2" standing water rule because the likelihood of a linear drain grate being competely covered/clogged is pretty remote. Have a conversation with your AHJ for a work-a-round. If you get a variance, certainly get the design signed off. They're much more up on linear drains than they were 5 or 10 years ago.

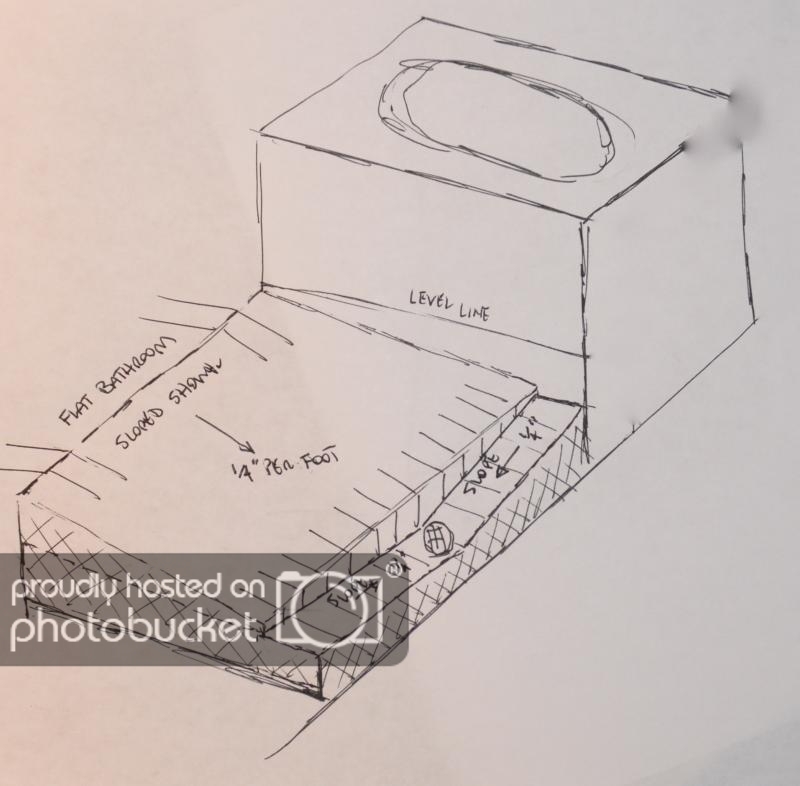

I have had the following approved. It's a drawing from another post, so it's not to scale for your shower. Essentially it's a sloped floor with a trench built from deck mud and covered with a topical membrane, then tiled. It entails the plane of the main shower floor being sloped at 1/4" per foot, that'll give you a 3/4" drop with your 3' run. That plane then drains into a trench that is also sloped to a center drain. Within the trench, your drain would have to be 1-1/4" below the edge of the shower floor.
In some showers the trench can be open. In others, it can be covered by a grate. Metal, teak, etc.
The attached design was for a few large showers where a manufactured linear drain wont fit. It's simply a sloped shower floor and a trench shaped out of mud. Don't know if it adds anything to the conversation, but what the heck. Here you go anyway.
Good luck!
Shower Slope
Thanks Mongo! That's a really interesting approach. I'll mention this to my clients as an option. I really appreciate the time you took to reply!
