Handrail Return

Faulted1 | Posted in Construction Techniques on May 18, 2008 06:18am

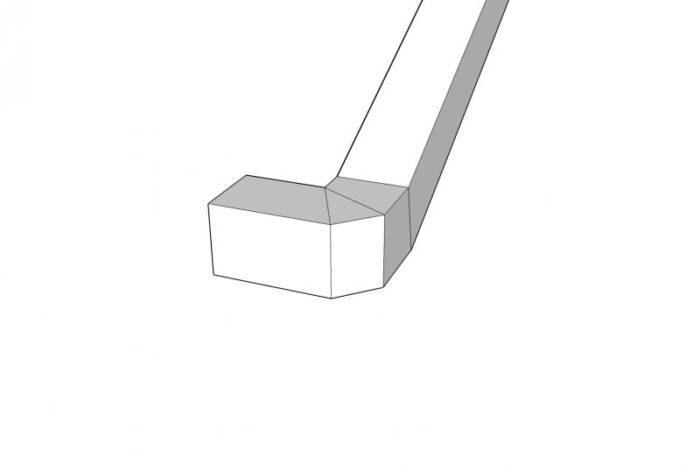

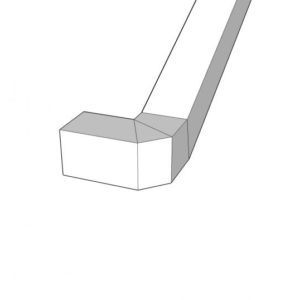

I have attached a drawing of a hand rail return.  This is for the wall side (no posts) of the stairs.  My basic question is “what is the standard practice?”.



The drawing is taken from an idea in a stair part catalog.  The hand rail is mitered back to level and then four 22.5 degree miters back to the wall.

Do you generally bring the return back to level?

Do you miter two 45 degree returns or four 22.5 degrees cuts?



Thanks.

F1

Reply
  • X
  • facebook
  • linkedin
  • pinterest
  • email
  • add to favorites Log in or Sign up to save your favorite articles

Replies

  1. jjwalters | May 18, 2008 08:02pm | #1

    On a normal trim job I would just use a 45 degree cut for a return...not too crazy about your picture cause it seems a bit overworked IMO

  2. User avater
    Huck | May 18, 2008 08:09pm | #2

    I like to use a round cross-section to avoid that detail

    View Image View Image

    View Image View Image
    View Image View Image
    View Image
    View Image View Image
    View Image View Image
    View Image View Image
    View Image View Image View Image
    View Image View Image
    View Image View Image View Image
    View Image
    View Image “Good work costs much more than poor imitation or factory product” – Charles Greene
    CaliforniaRemodelingContractor.com
  3. ChicagoMike | May 18, 2008 08:11pm | #3

    IMO, the drawing looks like a more contemporary solution. So yes, I would return it level and use 45 degrees to get to the wall and use whateve angle required to level the return.



    "It is what it is."

  4. MSA1 | May 18, 2008 08:30pm | #4

    I just 45 back into the wall. I kinda like your drawing though. Have you build that yet, and if so what about durability? I could really imagine kids having a field day on that thing and ripping it right off.

  5. dovetail97128 | May 18, 2008 09:55pm | #5

    If the time and money is in the job to do it the way you have drawn then it is my preferred method. If short on time and money then a simple 45 and return piece.

    I like the return to level piece to be longer however if the space is available.

    I use the same technique when wrapping a center wall at the landing.

    They can't get your Goat if you don't tell them where it is hidden.
  6. User avater
    Huck | May 18, 2008 11:12pm | #6

    View Image

    this is an old picture, not sure exactly how I did this one, since its not a true round.  Glued, screwed, and plugged, 'tho, I remember that!  I'm guessing it was close enough to round that I was able to "cheat" it to avoid the detail as you drew it.

    View Image “Good work costs much more than poor imitation or factory product” – Charles Greene
    CaliforniaRemodelingContractor.com



    Edited 5/18/2008 4:15 pm by Huck

    1. Faulted1 | May 19, 2008 06:31am | #8

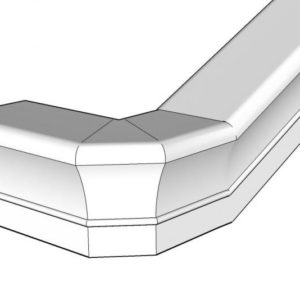

      I appreciate your comments.  I have done another drawing and hope it is a better representation of the actual parts.

      The handrail runs the entire left side of the stairs.  The guard rail on the right stops halfway up where the stairs are completely enclosed instead of one open side.



      Edited 5/18/2008 11:36 pm by Faulted1

      Edited 5/18/2008 11:38 pm by Faulted1

      1. Faulted1 | May 19, 2008 06:41am | #9

        DrawingView Image

        Edited 5/18/2008 11:41 pm by Faulted1

        1. User avater
          Huck | May 19, 2008 06:59am | #10

          You don't need to miter it back to level before returning, if all you're doing is returning to the wall.  When it becomes necessary is at a landing where it levels out around the bend, then angles back down the other side.  In that case, you have to level out first, before you can return around the bend - as your drawing shows.

          If you're dying into the wall, its more common, and more logical, to just return into the wall on the same plane as the steps - whether its a 90 degree return, or two 45's.View Image “Good work costs much more than poor imitation or factory product” – Charles GreeneCaliforniaRemodelingContractor.com

          1. Faulted1 | May 19, 2008 07:37am | #11

            Thanks Huck.  What I needed to know.

          2. dovetail97128 | May 19, 2008 07:56am | #14

            Perhaps, but that is a matter of opinion and when it comes to commercial work here code. My inspectors here rule that it has to return to level in commercial before returning to the wall, a rule based on the fact the rail has to extend beyond the first rise and still be at the minimum height.
            They can't get your Goat if you don't tell them where it is hidden.

          3. User avater
            Huck | May 19, 2008 10:15am | #15

            the rail has to extend beyond the first rise and still be at the minimum height.

            OK, I think I get it - so this would be on the lower (starting) level, but not the upper, or a landing?

            And yes, I was referring to residential.  View Image “Good work costs much more than poor imitation or factory product” – Charles GreeneCaliforniaRemodelingContractor.com

          4. User avater
            Huck | May 19, 2008 10:30am | #16

            View Image incorrect

            View Image correctView Image “Good work costs much more than poor imitation or factory product” – Charles GreeneCaliforniaRemodelingContractor.com

          5. User avater
            Huck | May 19, 2008 10:32am | #17

            View Image incorrect but interesting neverthelessView Image “Good work costs much more than poor imitation or factory product” – Charles GreeneCaliforniaRemodelingContractor.com

  7. Bing187 | May 19, 2008 05:06am | #7

    Not sure when folk say they 45 back to the wall if they mean two 45's so the rail 90's to the wall, or if they mean 45 true...so the cut on the wall is a 45. The latter is how I've done it for quite a while now, mainly due to a few building inspectors having issue with a 90 being a catch...purse straps, baggy pockets, etc. To return the rail to level, to me, looks clunky.

    my .02

    Bing

  8. plumbbill | May 19, 2008 07:49am | #12

    I prefer them to level off, but that's just me.

    Here's my Jatoba railing.

    View Image

    “The world is a dangerous place, not because of those who do evil, but because of those who look on and do nothing.” —Albert Einstein

    1. dovetail97128 | May 19, 2008 07:54am | #13

      very nice!
      They can't get your Goat if you don't tell them where it is hidden.

      1. plumbbill | May 19, 2008 02:36pm | #18

        Thanks,

        noticed the brass nipple & cap? Damn plumbers always have to add something ;-)

        “The world is a dangerous place, not because of those who do evil, but because of those who look on and do nothing.” —Albert Einstein

        1. dovetail97128 | May 19, 2008 07:50pm | #19

          I missed that . Did you custom make the wall brackets or did you add on to an off the shelf bracket?
          Either way that is a nice touch. While I may join in the jokes about plumbers from time to time I have a great deal of admiration for some of the work I have seen them do under much less than magic circumstances.
          They can't get your Goat if you don't tell them where it is hidden.

          1. plumbbill | May 20, 2008 06:10am | #20

            Semi custom.

            The plate was cast brass, some sort of standoff bracket for monstor thermostatic mixing valve I used on a job.

            & the pipe is sch 40 brass that I polished on my drill press.

            View Image

            “The world is a dangerous place, not because of those who do evil, but because of those who look on and do nothing.” —Albert Einstein

          2. dovetail97128 | May 20, 2008 07:27am | #21

            Creative and talented you are!
            They can't get your Goat if you don't tell them where it is hidden.

  9. robert | May 20, 2008 12:38pm | #22

    Faulted,

    Been a while so don't take it as the gospil,

    On commercial in most places you must return to level. Not so much residential.

    I personally think it makes a better job IF you have the room!

    If it's my own job?  NO MITRES, Nope, none not a one.

    I use 1/4 turns to present as round a corner as I can. Takes a little work, but next time you do one, look at where a wall rail falls height wise.

    Ever wonder how many 4 y/o's have gotten dinged in the head by that sharp a$$ corner since we started returning rails to the wall????????

    Once explained, I never had a customer argue the additional cost. Which by the way, isn't a whole lot more than what it costs in labor to make all those cuts and then stick them together

    1. Faulted1 | May 20, 2008 02:28pm | #23

      I was wondering when someone would suggest a "milled" quarter turn.  Appreciate your thoughts.  Appears to be more than one acceptable solution.
