Hip Roofs With Unequal Overhangs

kaorisdad | Posted in Construction Techniques on August 23, 2009 03:44am

I’m trying to design a 4:12 hip roof with unequal overhangs due to some jogs in walls.  How is this done to keep the ceiling elevation the same in the house?  I’ve seen interior soffits used to hide the roof rafters on the bumped out portion.  Is this the only solution?  I have 1-foot bump outs along several walls with new and existing construction.

Also, in drawing a plan view of 4:12 hips, are the angles 45-degrees?

Thanks in advance.

Reply
  • X
  • facebook
  • linkedin
  • pinterest
  • email
  • add to favorites Log in or Sign up to save your favorite articles

Replies

  1. Framer | Aug 23, 2009 04:57am | #1

    Any way to post a drawing and dimensions of the roof in plan view?

    You can have a 4/12 hip roof with jogs in and out all over the place with equal overhangs everywhere with the hips running at 45°.



    Joe Carola
    1. kaorisdad | Aug 23, 2009 06:17am | #2

      Thanks for the quick response.  I've included a pdf for discussion purposes.  Actually, I have a couple of questions:

      1.  At the wall jogs, the height of my wall top plate will be different, or I need a soffit, or ?

      2.  At the peak that I have clouded - how do I design the valley that is intersecting the ridge?

      Thanks again for your help.  I am trying to prepare drawings for permitting, and these issues have me stumped.

      File format
      1. User avater
        Huck | Aug 23, 2009 11:33am | #5

        I'm with Joe.   Wall dimensions needed.  Meanwhile, here is a rough sketch.  The roof is see-thru blue, and the ceiling is opaque, so you can see where the wall height is above ceiling height.View Image

        View Image bakersfieldremodel.com

        Edited 8/23/2009 4:39 am by Huck

        1. kaorisdad | Aug 24, 2009 12:18am | #18

          Huck - that is a pretty impressive and clear graphic.  If it is not a bother, can you sketch up what I just recently sent at the peak so I can see what is going on there?

          Thanks,

          Kaorisdad

          1. Framer | Aug 24, 2009 01:25am | #20

            Shrunk the drawinmg a little.Joe Carola

          2. User avater
            Huck | Aug 24, 2009 07:24am | #42

            Joe - How do you turn off the 3D effect, to get a flat 2D drawing like that with Sketchup?View Image bakersfieldremodel.com

          3. Framer | Aug 24, 2009 09:45am | #45

            Huck,

            Not sure I understand what you're saying. Try this.

            1) View

            2) Face Style

            3) Click "Shaded"

             Joe Carola

          4. User avater
            Huck | Aug 24, 2009 02:18am | #21

            I'd like to help you out, but your drawing (which is all I have to work with) is goofy - or else your existing house is.  The existing ridge, as you've drawn it, is not centered on the house.  What's up with that?View Image bakersfieldremodel.com

      2. User avater
        SamT | Aug 23, 2009 04:04pm | #6

        Design roof flat on bottom at house footprint. Make bearing walls taller as needed to meet roof bottom. Some walls have to rake.

        In  your PDF, SE corner has shortest wall, SW has tallest. Make all ceilings same as SE.

        View ImageSamTA Pragmatic Classical Liberal, aka Libertarian.

        I'm always right! Except when I'm not.

      3. jimAKAblue | Aug 23, 2009 04:36pm | #7

        That drawing would be plenty enough for me to frame your house. In fact, most of the houses I did, were done without a plan view of the roof. I started getting them from the truss companies in the 90's however. Framers don't really need a plan view of the roof to frame it. It basically plays itself out.

        Your clouded area does not need any more detail. That situation will occur and the framer will just do it.

        You have a couple choices on dealing with the issues you've raised:

        1)you either have to raise the height of the walls and maintain a uniform heel

        or

        2)maintain the uniform height of the walls and raise the height of the heel.



        I'd opt for #2. I'd build all the exterior walls at 9' and then the heel on the walls with the 2' overhang would be 4" greater than the heels in the areas with 12" overhangs.

        So, depending on how critical your insulation needs are: I'd put a 6" heel on the roof components and then bump it up to 10" where needed.

        1. kaorisdad | Aug 23, 2009 06:34pm | #8

          This is great - thanks all for your responses.  I can see that I need to be more precise in my dimensions.  I'll revise my sketch and post again later.  I sketched something approximate for discussion, but I'll redo it with actual dimensions.

          I obviously came to the right place.  It's great to have this resource available.  All of your expertise is really appreciated.

          It seems that varying the wall heights is fine... but what about the continuous chords I need for my seismic?  The top plates act as tension/compression ties for lateral loads and are supposed to be continuous - I live in earthquake country.  With the different height walls, how do I keep the top plates continuous?  Or are 'cripples' installed on top of the higher walls?

          Again, thanks all for the detailed responses.

          Kaorisdad

          1. User avater
            Huck | Aug 23, 2009 06:41pm | #9

            Depends on the variance.  It might be as simple as adding blocking beween joists that the rafters sit on - or that, in conjunction with varying the seat-cut (height-above-plate).  4:12 is a pretty shallow pitch, depending on the offset of the walls, you're not talking about a whole lot of difference.  At any rate, rafter ties, usually every 4', can tie the rafters together across the span of the roof.View Image bakersfieldremodel.com

          2. jimAKAblue | Aug 23, 2009 07:00pm | #11

            Good point Huck.

            He might also decide to slightly adjust the distance of the overhangs to simplify the blocking proposition. For instance, he's currently proposing a 12" difference which will produce a 4" height adjustment. Maybe he might want to increase or decreas that so two blocks or three blocks would work perfectly.

            For two blocks (3" difference) he'd have to have only a 9" diffence in overhangs.

            For three blocks (4.5" diff), he'd have to increase the overhang difference to 13.5".

            There are lots of ways to skin a cat...or design overhangs and roof systems.

          3. jimAKAblue | Aug 23, 2009 06:55pm | #10

            I don't have any experience in seismic country. So, if I were building in a seismic country, I would intstinctively choose to let the truss companies design trusses for me and expect them to survive any earthquake.

            I would let them tell me what the best solution is regarding heel heights and plate heights.

            But, with that said, I would also think that maintaining the same height plates would be far easier and stronger with regard to the issues youve raised.

      4. User avater
        Huck | Aug 24, 2009 02:35am | #23

        It appears to me that your drawing has some fundamental problems.  So you've started with a faulty drawing, and you're asking for help to finish it correctly.  But you can't finish correctly what was begun incorrectly.

        You have some good minds here willing to work with you.  I think your best option would be to show us what you have (existing) walls and roof wise, and what you want to add, walls wise.  Then let us show you some roof options to tie into what you have.

        View Image bakersfieldremodel.com

        Edited 8/23/2009 7:40 pm by Huck

        1. kaorisdad | Aug 24, 2009 02:54am | #25

          I'll try and get some measurements of the existing. I have some drawings that were done by an engineer previously for a remodel that I was using as a base, but I know there are some errors from spot checking measurements.  The only measurement I am unsure of is where the existing ridge is - everything else shown is new.  I believe Joe has shown what I would like to do in the new area.  Will this work?  If the new ridge doesn't line up with the existing, couldn't I add a break in the ridge?  My house already has one (that will be demolished as part of this remodel).

          I'm kind of unsure how much detail I need to add for a framer.  My previous remodel was done with less info than I am showing here.  The framers just made it work somehow.  Joe's comment previously seems to be the norm.  Of course all the hips, ridge members, rafters, etc. will be properly sized.

          Thanks again for your help.

          1. User avater
            Huck | Aug 24, 2009 03:08am | #26

            I'm kind of unsure how much detail I need to add for a framer.  My previous remodel was done with less info than I am showing here.

            A good framer will figure it out.  A good drawing will ensure that what gets built is done the way you would want it done.

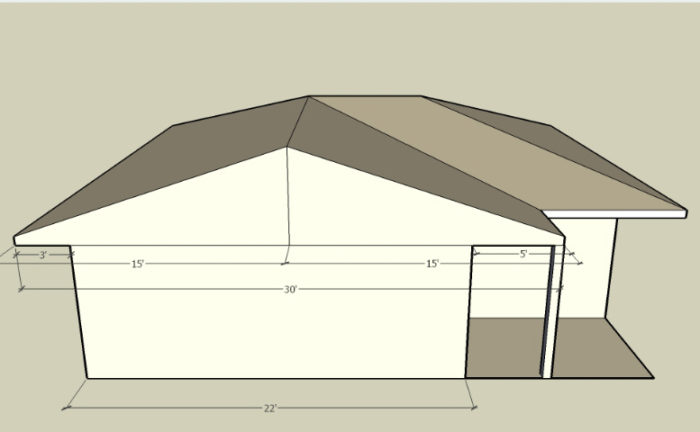

            Your drawing shows an existing house with a 5' overhang on the south side, and a 3' overhang on the north side, but with equal pitch on either side.  Is this what you have?  Are the walls at the same height, or differing?  If the walls are at the same height, then the fascia is at a different height on the north than on the south.  Is that the case?  If the fascia is at the same height, then the walls are different heights.  If both fascia and walls are at the same height, then the roof pitch is different on each side.  Which one is it?

            If the new ridge doesn't line up with the existing, couldn't I add a break in the ridge?

            Sure, but that would look really funky, and lead to some odd detailing.

            View Image bakersfieldremodel.com

            Edited 8/23/2009 8:08 pm by Huck

          2. Framer | Aug 24, 2009 05:09am | #31

            Is this the way it's supposed to look with the offset ridge, 4/12 all the way around and same fascia heights all the way around?



             Joe Carola

          3. kaorisdad | Aug 24, 2009 06:06am | #34

            Joe,

            Yes, that is it - I haven't measured the existing ridge yet, but that is very close.  The facia is the same elevation all the way around the entire house.  What you show as a porch with a post is actually just an extended eave on the front of the house.  I've attached a pic of the "South" elevation.  The existing East side of the house will be demolished and rebuilt as I've shown which starts at about the second window from the right side of the picture.  The East side was a garage that was converted to livable space at some point in the past.  However, the slab is at grade and water migrates into the interior causing mold.  As part of the remedy (building a proper foundation and flor slab above grade), I decided to add some space, building forward (South) and back (North).  You can see the angled driveway I mentioned a few emails ago.

            Kaorisdad

          4. User avater
            Huck | Aug 24, 2009 07:22am | #41

            kinda hard to tell from your photo, but if it has a boxed eave (soffit), it'll probably look something like thisView ImageView Image bakersfieldremodel.com

          5. Framer | Aug 24, 2009 08:46pm | #48

            What's the measurement of the front where the 5' overhang is. I noticed that's a hip roof also. Is the front 3'?Joe Carola

          6. User avater
            Huck | Aug 24, 2009 09:25pm | #49

            Hopefully the o.p. will give some clarification.  This is what I think is happening:View ImageView Image bakersfieldremodel.com

  2. Framer | Aug 23, 2009 06:37am | #3

    Can you put the dimensions on every wall?



    Joe Carola
  3. User avater
    Huck | Aug 23, 2009 09:06am | #4

    Your wall heights can vary according to the roof, while the ceiling heights remain constant.   Ceilings do not have to sit on the top plate.

    View Image bakersfieldremodel.com
  4. User avater
    Joe | Aug 23, 2009 09:48pm | #12

    After looking at the plan. . . The question that begs to be asked is why not frame the roof where all the overhangs are equal? Just add a hip or two and move the valley a bit and you are there.

    View Image

    http://www.josephfusco.org

    http://www.constructionforumsonline.com



    Edited 8/23/2009 2:50 pm ET by Joe

    1. jimAKAblue | Aug 23, 2009 11:34pm | #15

      Why would that particular question "beg to be asked"?

      The idea of straight clean line at the eave might appeal to some people (me).

      1. User avater
        Joe | Aug 24, 2009 06:13am | #35

        Jim,Considering what's needed to achieve that look it might just be easier all the way around to frame it the way the plan dictates it. Like I said for me the first question would be, why can't the overhangs be equal.http://www.josephfusco.orghttp://www.constructionforumsonline.com

        Edited 8/23/2009 11:14 pm ET by Joe

        1. Framer | Aug 24, 2009 09:42pm | #52

          Like I said for me the first question would be, why can't the overhangs be equal.

          Joe,

          They can be equal with keeping a 4/12 pitch all the way. The only thing is that the right side width is smaller than the front porch side and lower side that have the same span. Where the 1' jog is can be a hip and valley. That creates a small level spot at the top of the roof which isn't that bad.

           Joe Carola

          1. kaorisdad | Aug 24, 2009 09:55pm | #54

            I would rather not have that flat spot on top.  If I extended the eave to 4-feet and 3-feet on the East side (the eave would be straight running N/S like shown in Post 21), would this get rid of that flat spot?

          2. User avater
            Huck | Aug 24, 2009 10:00pm | #56

            I would rather not have that flat spot on top.

            If the existing house is 30' across, fascia to fascia, as you've drawn it, and the addition is 30' fascia to fascia, as you've drawn it (24' house, 3' overhang west side, 3' overhang east side), then there should be no flat spot - the ridges will meet at the same height.

            --------------------------------------------

            edited to add: Oh, I see, the flat spot occurs because Joe added a little valley where the roof jogs.  I personally don't see any purpose for that, but different strokes for different folks.  I'd build it just as I drew it.

            View Image bakersfieldremodel.com

            Edited 8/24/2009 3:03 pm by Huck

    2. Piffin | Aug 24, 2009 03:13am | #28

      Heck, why not move the walls too?;)Adding extra valleys might create water dumps in bad spots below



      Welcome to the Taunton University of Knowledge FHB Campus at Breaktime. where ... Excellence is its own reward!

  5. Framer | Aug 23, 2009 09:53pm | #13

    Why isn't the valley sitting on the corner? The jogs can be framed with hips and valleys and all overhangs can be the same. Is there some reason why that overhnag looks like it's around 4' where the valley is? You need to post the dimensions.



    Joe Carola



    Edited 8/23/2009 2:56 pm ET by Framer

    1. kaorisdad | Aug 23, 2009 11:27pm | #14

      Yeah, there is an existing 4-5-ft overhang that is existing.  I'll sketch something with actual dimensions and post later today.

      1. Framer | Aug 24, 2009 01:20am | #19

        Would this be alright with the overhang at 4' top right side?

        Notice that you left side where the existing roof and 5' overhang is where the valley sits is the same 30' fascia to fascia as the right side 30'. Therefore your ridges are the same height and same span. The top right hand corner gives you the same span and the hip offsets the corner creating a 4' overhang just in that spot. Plates would have to be raised a little for the back 2' overhang to work.Joe Carola

        1. kaorisdad | Aug 24, 2009 02:35am | #22

          Framer,

          Yes, that would be fine.  I had it that way originally, but wasn't sure if the hip had to line up with the corner?  Your diagram is the way I'll go, with the exception being the below comment to Huck.

          Huck,

          Is the ridge normally centered on the walls or the roof?  I had it shown centered on the roof, but if it is easier, center it on the walls.  Thinking about it, I suppose it should be centered on the walls.



          1. User avater
            Huck | Aug 24, 2009 02:40am | #24

            Is the ridge normally centered on the walls or the roof?  I had it shown centered on the roof, but if it is easier, center it on the walls.  Thinking about it, I suppose it should be centered on the walls.

            On an existing house, it is what it is.  You want your addition to tie into what is there.  You have to draw what is there, accurately, in order to design a roof that will tie in.  As you have drawn it, the ridge is not centered on anything.

            Sometimes this is done, with uneven pitches, in order to keep the fascia at the same height.  But you show a ridge not centered on anything, with equal pitches on both sides, and a fascia that will be 8" higher on the north side of your addition than it is on the south side.  So your exterior walls are differing heights, and your fascia is on differing heights.  That seems unlikely, but if its the case, you need to spell out exactly what is going on with the existing roof.

            View Image bakersfieldremodel.com

            Edited 8/23/2009 7:47 pm by Huck

          2. kaorisdad | Aug 24, 2009 03:11am | #27

            Got it - this makes sense.  I'll measure the existing roof tomorrow and take a pic of the existing.

            Thanks again.

          3. User avater
            Huck | Aug 24, 2009 04:36am | #29

            Got it - this makes sense.  I'll measure the existing roof tomorrow and take a pic of the existing.

            OK, great!  I feel like we're on track to get you a solid answer you can build with.View Image bakersfieldremodel.com

          4. User avater
            Huck | Aug 24, 2009 04:45am | #30

            In the first drawing, the roof pitch is the same on both sides, and the ridge is centered between the fascia on each side.

            In the second drawing, the roof pitch is the same on both sides, and the ridge is centered between the walls.

            In the third drawing, the roof pitch is different on each side, and the ridge just ends up where the two pitches meet, not centered on anything.

            You should have (existing) one of the three.

            View ImageView Image bakersfieldremodel.com

          5. kaorisdad | Aug 24, 2009 06:26am | #36

            Huck,

            I'm thinking it's gotta be the third - the pitch must be different as you show.  I'll try and verify tomorrow.

            Thanks

          6. User avater
            Huck | Aug 24, 2009 06:44am | #37

            looking at your picture, I'm thinking its fascia the same height, walls different height.  If so, here's the new roofView ImageView Image bakersfieldremodel.com

          7. User avater
            Huck | Aug 24, 2009 06:45am | #38

            View ImageView Image bakersfieldremodel.com

          8. User avater
            Huck | Aug 24, 2009 06:48am | #39

            View ImageView Image bakersfieldremodel.com

          9. User avater
            Huck | Aug 24, 2009 06:49am | #40

            View ImageView Image bakersfieldremodel.com

          10. MrJalapeno | Aug 24, 2009 07:29am | #43

            If you keep the new room addition the same span or less than the existing main span, and the minimum overhang equal (2’) then the plate heights can stay equal to the existing with a couple of  4” raised plates ( Adjusted heel heights?) at the 3’ overhangs (2’ + 1’ offset).  Huck’s first illustration is the closet to what I'm describing and would personally like for its clean simplicity.  The pitches remains equal too.  (As Joe C. shows in post 21)

            Edited 8/24/2009 12:39 am ET by MrJalapeno

          11. Framer | Aug 24, 2009 09:41am | #44

            I'm thinking it's gotta be the third - the pitch must be different as you show.

            Why does the pitch have to be different?

            Can you change the porch overhang to 4' and then make the left side the same 4' and the rest will be 3' like everywhere else? This way the front has the ridge in the center with the left side overhang matching the porch overhang.

            Joe Carola

            Edited 8/24/2009 2:42 am ET by Framer

          12. User avater
            Huck | Aug 24, 2009 03:23pm | #46

            Why does the pitch have to be different?

            I agree.  Looking at his photo, I doubt the pitch is different.  They wouldn't have done that on a tract home.  I think the fascia is at the same height all the way around, and the ridge is centered between the south side fascia and the north side fascia, differing overhangs notwithstanding.

            I don't think he can readily change the overhangs, as he is tying into the existing structure, and that's whats already there - 5' overhang in front (south), and 3' overhang in back (north).  The right side in the photo is coming off, to make room for the new addition.  The angled driveway causes the building and the roof to be clipped in that back corner, for vehicles.View ImageView Image bakersfieldremodel.com

          13. User avater
            Huck | Aug 24, 2009 04:38pm | #47

            Here is my sketchup model, if anyone wants to tinker with it

             View Image bakersfieldremodel.com

          14. kaorisdad | Aug 24, 2009 09:25pm | #50

            Huck,

            You are probably right about the pitch.

            You are correct about the overhangs and tying into the existing structure.  You are also correct about the right side of the structure and the driveway and clipping the back corner for vehicle clearance.  Your graphic depicts what I intend on doing.  It would appear that I would have to have different height walls to accomplish this.

          15. User avater
            Huck | Aug 24, 2009 09:31pm | #51

            It would appear that I would have to have different height walls to accomplish this.

            There are other ways.  You can frame your walls at the same height, then brace each rafter down to the top plate, its not that big a deal to do.  Same concept as a purlin with kickers transfering the load down to a bearing wall, except I doubt you'd have room for a purlin!  I would just make sure the framer is clear on the design, then let him frame it as he sees fit.  Unless you're framing it yourself, in which case you need to decide ahead of time.

            Then again, different height walls is no big deal, either.  Pretty simple affair on this little addition.View Image bakersfieldremodel.com

          16. kaorisdad | Aug 24, 2009 09:43pm | #53

            Huck/Joe,

            Thanks to you and the rest for your considerable time and effort on my addition.  I will show it as you have described and go over ahead of time with the framer what I would like done.   Really, as long as the fascia is kept level all around the house, and the tie into the existing ridge is relatively clean, that is all I care about.  I also need the 3-foot overhang on the South side for appearance to match the 3-feet overhangs elsewhere.

            As an aside from this, where I am building requires a Conditional Use Permit for my eaves which are mostly 3-feet.  The Planning Department has a goofy ordinance that limits percentages of lot coverage.  If the eaves were 2-feet, the lot coverage is just the livable area (to the walls).  For eaves greater than 2-feet, I have to count the area of the roof eaves which put me over the lot coverage maximum.

            Sorry to put you guys through so much effort.  I just wasn't sure of how much detail I really needed to provide to the framer.  I think I have a pretty good idea now.

            Kaorisda

          17. User avater
            Huck | Aug 24, 2009 09:56pm | #55

            something like this (I drew the purlin in)View ImageView Image bakersfieldremodel.com

          18. kaorisdad | Aug 24, 2009 10:02pm | #57

            Hmmm, I would have to be able to get my roof diaphragm seismic loads transferred to the walls and chords.  Bit of a challenge, but doable.  I just have to make sure I provide details to address the different wall conditions.  I might have to do this after I talk with a framer.

          19. User avater
            Huck | Aug 24, 2009 10:06pm | #58

            I would have to be able to get my roof diaphragm seismic loads transferred to the walls and chords.

            That's exactly what I drew.  Not sure where the challenge is, you must know something I don't!  Where do you live - top of Mt. St. Helens?  Hahahaha.  =)View Image bakersfieldremodel.com

          20. kaorisdad | Aug 24, 2009 10:20pm | #59

            Lol.  No, this is in the Pasadena/San Gabriel Valley area in SoCal.

            The seismic loads in your graphic are running parallel to the wall and purlin.  Usually, this is accomplished by nailing the plywood to blocking, and then clipping the blocking to the top plate of the wall with Simpson clips.  The top plate drags the seismic load to a shearwall.  With the diaphragm elevated as you have shown, I don't see any continuity between the diaphragm (plywood) and the wall.

            I am an engineer, but I really don't do any residential work.  Thus, the perhaps silly questions about this roof and details.

          21. User avater
            Huck | Aug 24, 2009 11:39pm | #60

            I'd be surprised if the city required it, on such a small addition, but if they did, or it you just wanted it for peace of mind, there are any number of ways that could be pretty easily accomplished.  I just wanted to illustrate how to frame the walls at uniform height, then transfer the roof load to them.

            BTW, my mom lives in NoHo/Burbank area, and I need to get down and visit her.  Do you need a general contractor on this?  Then I could drop by my other favorite spot - Gamble House!View Image

            View Image bakersfieldremodel.com

            Edited 8/24/2009 4:45 pm by Huck

          22. kaorisdad | Aug 25, 2009 01:54am | #62

            Thanks for the offer, but I think I have a contractor in mind.  I do have your link and when I get close to bidding I'll keep your company in mind.  I'm quite a ways off from that point though.  I have to go through a Design Review Committee, Planning Commission approval for a Conditional Use Permit, and then the Building Permit process.

          23. Framer | Aug 25, 2009 12:24am | #61

            If you use 2x8 ceiling joists and 2x8 rafters for example, your front cross section with the rafters on the left side with the 3' overhang sitting on the top plate will allow you on the right side with the 5' overhang to nail a plate across the top of the joists and put a birdsmouth on the rafter. Extend the ceiling joist all the way out to the end of the rafter at the overhang. This will tie everything in.

             Joe Carola

          24. kaorisdad | Aug 25, 2009 01:58am | #63

            The existing eaves just have 2x4s extending out.  The house was originally built in the 40's.  I plan to splice a 2x4 extension onto the new 2x8 rafters to keep the look the same.

          25. Framer | Aug 25, 2009 02:00am | #64

            What size the existing ceiling joists?

             Joe Carola

          26. kaorisdad | Aug 25, 2009 02:31am | #65

            I think they are 2x6, but I'm not sure.  I know the new will be 2x6 @ 16-inches.

          27. Framer | Aug 25, 2009 11:31pm | #67

            I know the new will be 2x6 @ 16-inches.

            You'll just have to add 2 plates using 2x6 joists.





            View ImageJoe Carola

          28. kaorisdad | Aug 25, 2009 02:35am | #66

            Actually, maybe they are 2x6's extending out.  I need to check that.

          29. Framer | Aug 24, 2009 05:17am | #32

            Another shot with the roof.Joe Carola

          30. User avater
            Huck | Aug 24, 2009 05:30am | #33

            Joe - would you just go over there and build the doggone thing, and get it over with?  Take less time than we're spending here!   =)View Image bakersfieldremodel.com

    2. jimAKAblue | Aug 23, 2009 11:37pm | #16

      That looks like it's covering the front porch with the porch being 4 or 5' wide.

      Is their some reason why you feel that the valley must lay over the corner?



      1. kaorisdad | Aug 24, 2009 12:13am | #17

        Yes, there is an existing 5-foot overhanging eave.  Attached is my detailed sketch showing existing and new for discussion.

        I'm still confused where the new valley hits the ridge peak.  I can't visualize how that will fit.  Is this something that framers just figure out?

        Basically, the job scope is a new addition as shown.  Most of the existing eaves are 3-feet, except in the front, where it varies from 3-feet to 5-feet (I didn't show that).  I'm restricted on space on the North, South and West sides.  The West side 'jog' is because of a angled driveway that runs N/S.  I need this jog to maintain adequate sideyard clearances.

        Similarly, the jog on the North side is because I'm trying to maximize interior space, and it is as far back as I can go.  Every foot makes a difference in this particular addition.

        Thanks again for everyone's input.

        File format

Log in or create an account to post a comment.

Sign up Log in

Become a member and get full access to FineHomebuilding.com

Video Shorts

Categories

  • Business
  • Code Questions
  • Construction Techniques
  • Energy, Heating & Insulation
  • General Discussion
  • Help/Work Wanted
  • Photo Gallery
  • Reader Classified
  • Tools for Home Building

Discussion Forum

Recent Posts and Replies

  • |
  • |
  • |
  • |
  • |
  • |
View More Create Post

Up Next

Video Shorts

Featured Story

Versatile Vise

The IQ Vise has angled jaws, a simple locking mechanism, and solid holding power.

Featured Video

How to Install Cable Rail Around Wood-Post Corners

Use these tips to keep cables tight and straight for a professional-looking deck-railing job.

Related Stories

  • Podcast Episode 692: Introduction to Trade Work, Embodied Carbon, and Envelope Improvements
  • FHB Podcast Segment: Embodied Greenhouse Gas Emissions and the Building Codes
  • Old Boots Learn New Tricks
  • Install Denim Insulation Like a Pro

Highlights

Fine Homebuilding All Access
Fine Homebuilding Podcast
Tool Tech
Plus, get an extra 20% off with code GIFT20

"I have learned so much thanks to the searchable articles on the FHB website. I can confidently say that I expect to be a life-long subscriber." - M.K.

Get home building tips, offers, and expert advice in your inbox

Signing you up...

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
See all newsletters
See all newsletters

Fine Homebuilding Magazine

  • Issue 332 - July 2025
    • Custom Built-ins With Job-Site Tools
    • Fight House Fires Through Design
    • Making the Move to Multifamily
  • Issue 331 - June 2025
    • A More Resilient Roof
    • Tool Test: You Need a Drywall Sander
    • Ducted vs. Ductless Heat Pumps
  • Issue 330 - April/May 2025
    • Deck Details for Durability
    • FAQs on HPWHs
    • 10 Tips for a Long-Lasting Paint Job
  • Issue 329 - Feb/Mar 2025
    • Smart Foundation for a Small Addition
    • A Kominka Comes West
    • Making Small Kitchens Work
  • Issue 328 - Dec/Jan 2025
    • How a Pro Replaces Columns
    • Passive House 3.0
    • Tool Test: Compact Line Lasers

Fine Home Building

Newsletter Sign-up

  • Fine Homebuilding

    Home building tips, offers, and expert advice in your inbox.

  • Green Building Advisor

    Building science and energy efficiency advice, plus special offers, in your inbox.

  • Old House Journal

    Repair, renovation, and restoration tips, plus special offers, in your inbox.

Signing you up...

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
See all newsletters

Follow

  • Fine Homebuilding

    Dig into cutting-edge approaches and decades of proven solutions with total access to our experts and tradespeople.

    Start Free Trial Now
    • Facebook
    • Instagram
    • X
    • LinkedIn
  • GBA Prime

    Get instant access to the latest developments in green building, research, and reports from the field.

    Start Free Trial Now
    • Facebook
    • YouTube
  • Old House Journal

    Learn how to restore, repair, update, and decorate your home.

    Subscribe Now
    • Facebook
    • Instagram
    • X
  • Fine Homebuilding

    Dig into cutting-edge approaches and decades of proven solutions with total access to our experts and tradespeople.

    Start Free Trial Now
    • Facebook
    • Instagram
    • X
    • LinkedIn
  • GBA Prime

    Get instant access to the latest developments in green building, research, and reports from the field.

    Start Free Trial Now
    • Facebook
    • YouTube
  • Old House Journal

    Learn how to restore, repair, update, and decorate your home.

    Subscribe Now
    • Facebook
    • Instagram
    • X

Membership & Magazine

  • Online Archive
  • Start Free Trial
  • Magazine Subscription
  • Magazine Renewal
  • Gift a Subscription
  • Customer Support
  • Privacy Preferences
  • About
  • Contact
  • Advertise
  • Careers
  • Terms of Use
  • Site Map
  • Do not sell or share my information
  • Privacy Policy
  • Accessibility
  • California Privacy Rights

© 2025 Active Interest Media. All rights reserved.

Fine Homebuilding receives a commission for items purchased through links on this site, including Amazon Associates and other affiliate advertising programs.

  • Home Group
  • Antique Trader
  • Arts & Crafts Homes
  • Bank Note Reporter
  • Cabin Life
  • Cuisine at Home
  • Fine Gardening
  • Fine Woodworking
  • Green Building Advisor
  • Garden Gate
  • Horticulture
  • Keep Craft Alive
  • Log Home Living
  • Military Trader/Vehicles
  • Numismatic News
  • Numismaster
  • Old Cars Weekly
  • Old House Journal
  • Period Homes
  • Popular Woodworking
  • Script
  • ShopNotes
  • Sports Collectors Digest
  • Threads
  • Timber Home Living
  • Traditional Building
  • Woodsmith
  • World Coin News
  • Writer's Digest
Active Interest Media logo
X
X
This is a dialog window which overlays the main content of the page. The modal window is a 'site map' of the most critical areas of the site. Pressing the Escape (ESC) button will close the modal and bring you back to where you were on the page.

Main Menu

  • How-To
  • Design
  • Tools & Materials
  • Video
  • Blogs
  • Forum
  • Project Guides
  • Reader Projects
  • Magazine
  • Members
  • FHB House

Podcasts

  • FHB Podcast
  • ProTalk

Webinars

  • Upcoming and On-Demand

Podcasts

  • FHB Podcast
  • ProTalk

Webinars

  • Upcoming and On-Demand

Popular Topics

  • Kitchens
  • Business
  • Bedrooms
  • Roofs
  • Architecture and Design
  • Green Building
  • Decks
  • Framing
  • Safety
  • Remodeling
  • Bathrooms
  • Windows
  • Tilework
  • Ceilings
  • HVAC

Magazine

  • Current Issue
  • Past Issues
  • Magazine Index
  • Subscribe
  • Online Archive
  • Author Guidelines

All Access

  • Member Home
  • Start Free Trial
  • Gift Membership

Online Learning

  • Courses
  • Project Guides
  • Reader Projects
  • Podcast

More

  • FHB Ambassadors
  • FHB House
  • Customer Support

Account

  • Log In
  • Join

Newsletter

Get home building tips, offers, and expert advice in your inbox

Signing you up...

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
See all newsletters
See all newsletters

Follow

  • X
  • YouTube
  • instagram
  • facebook
  • pinterest
  • Tiktok

Join All Access

Become a member and get instant access to thousands of videos, how-tos, tool reviews, and design features.

Start Your Free Trial

Subscribe

FHB Magazine

Start your subscription today and save up to 70%

Subscribe

Enjoy unlimited access to Fine Homebuilding. Join Now

Already a member? Log in

We hope you’ve enjoyed your free articles. To keep reading, become a member today.

Get complete site access to expert advice, how-to videos, Code Check, and more, plus the print magazine.

Start your FREE trial

Already a member? Log in

Privacy Policy Update

We use cookies, pixels, script and other tracking technologies to analyze and improve our service, to improve and personalize content, and for advertising to you. We also share information about your use of our site with third-party social media, advertising and analytics partners. You can view our Privacy Policy here and our Terms of Use here.

Cookies

Analytics

These cookies help us track site metrics to improve our sites and provide a better user experience.

Advertising/Social Media

These cookies are used to serve advertisements aligned with your interests.

Essential

These cookies are required to provide basic functions like page navigation and access to secure areas of the website.

Delete My Data

Delete all cookies and associated data
