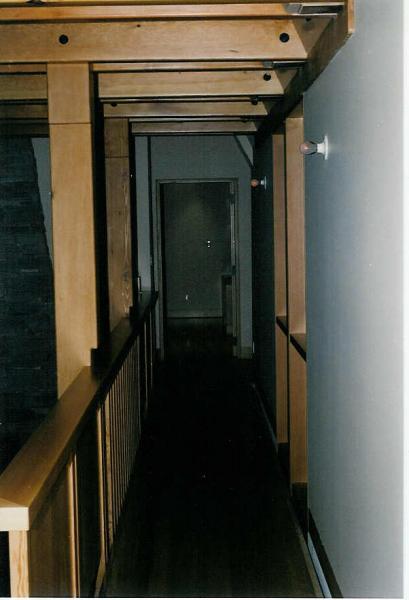

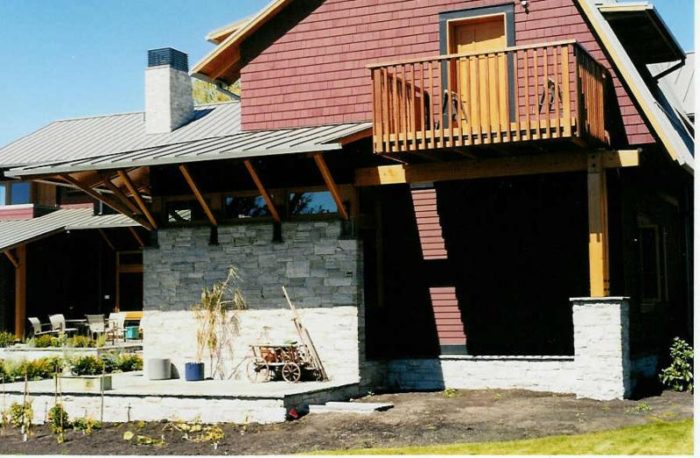

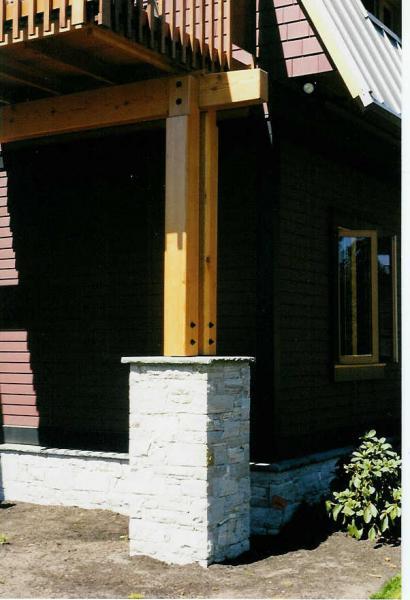

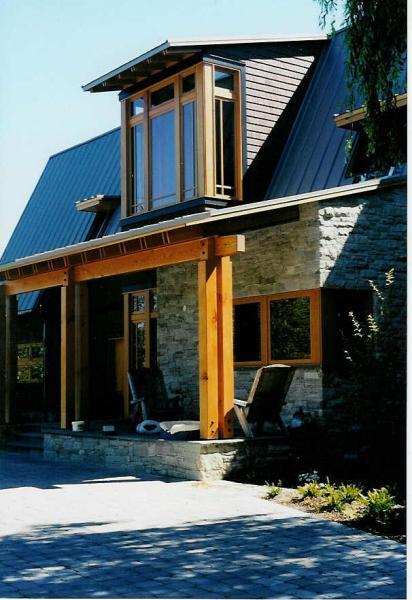

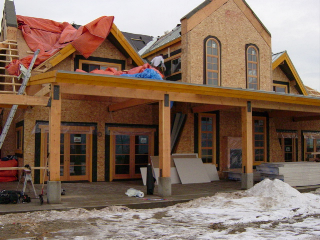

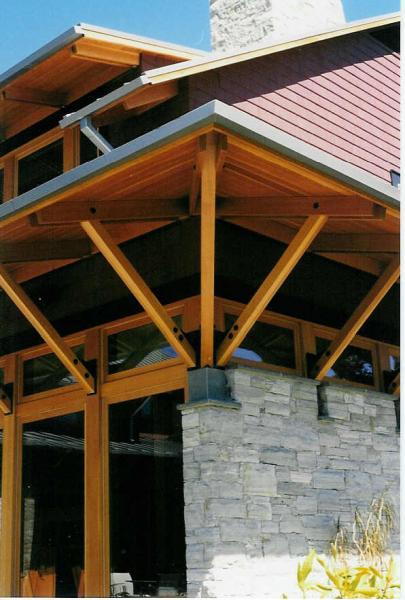

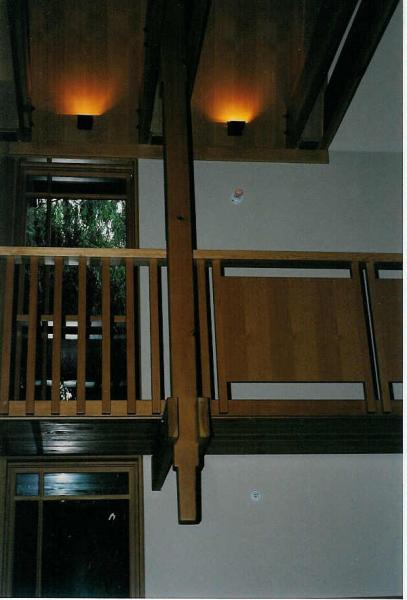

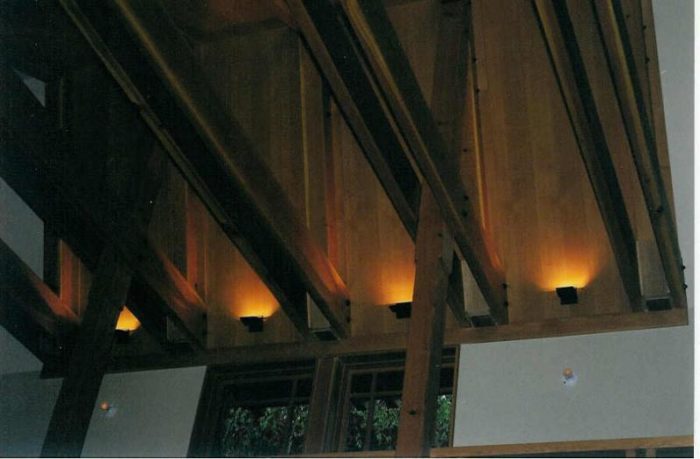

Here are some photos(finally) of my timber job in 2002..Timber king post trusses were designed to hold bridge to #1 son’s room over the family/greatroom. the other shots are the front entry and the rear master deck and supports, FUN JOB!
Listeners write in about continuing education, minisplit heat pumps, compact home shops, and building science.
"I have learned so much thanks to the searchable articles on the FHB website. I can confidently say that I expect to be a life-long subscriber." - M.K.
Replies
Please excuse my ignorance
looking at your pictures you are experienced and quality is a positive aspect
I am a stick framer, closest to timber framing is glue lams, big beams, engineered straps and plates and seams over posts but nothing as artisitic, just strucutral

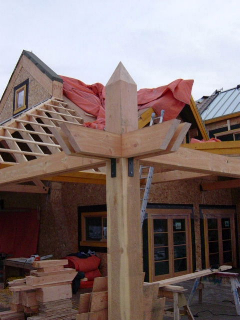

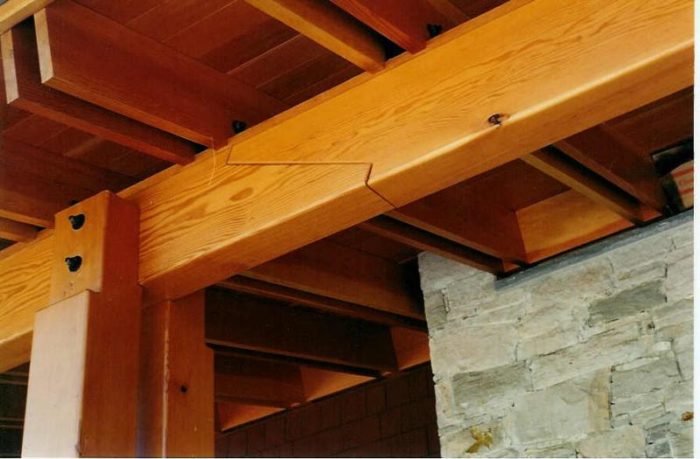

I have little experience with timber framing, is # 5 a mid air splice a good practice
