Shed
The shed was built on a skid foundation of two redwood 6” by 6”s with 7” by 3”s 14” o/c for the floor joists and 34” T+G OSB for the floor. The floor is insulated with sheets of ridgid 2” insulation cut to fit between the joists, the walls and ceiling were insulated with 4” ridgid insulation. The walls were 4” by 2”s 16” o/c with double top plates, i used house wrap and 7/8” redwood shiplap siding on the outside. The rafters were 5” by 2”s and the ridge was a 6” by 2”, the roof sheathing is cement composite faux tile sheets which were secured with galvinised lag bolts and neoprene washers. A coloured cap covers the lag head, unfortunetly i was given the wrong colour washers and bolt covers! I used brown upvc fascia, soffit, gutters and downpipes to match the windows. The doors are redwood to match the siding and were handmade. The inside was sheathed with 3/8” OSB. I will be building a box step for the back door and a ramp for the double doors. More pics to follow.
-
Kitchen cabinet door panels ready for finishing.
-

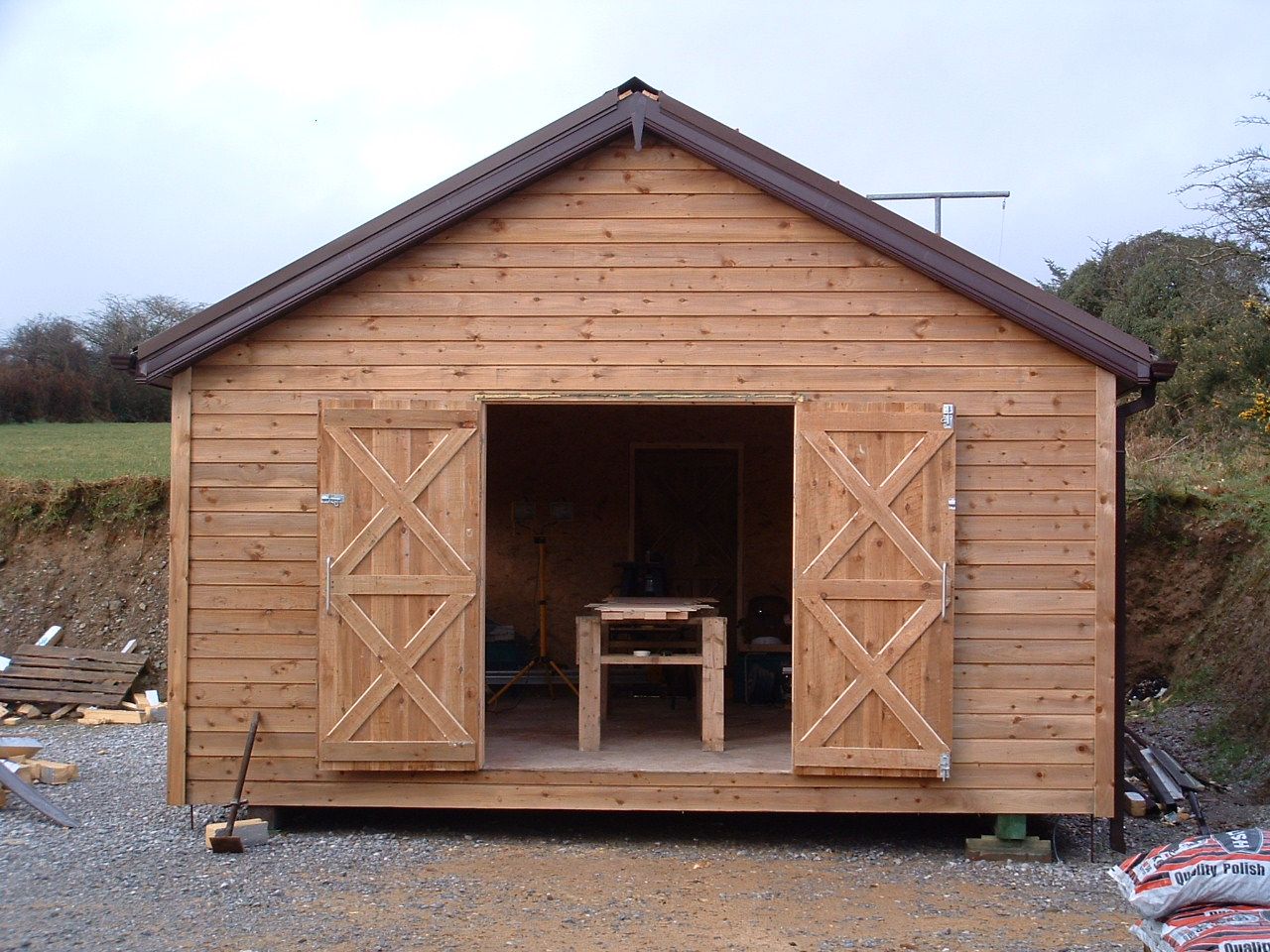

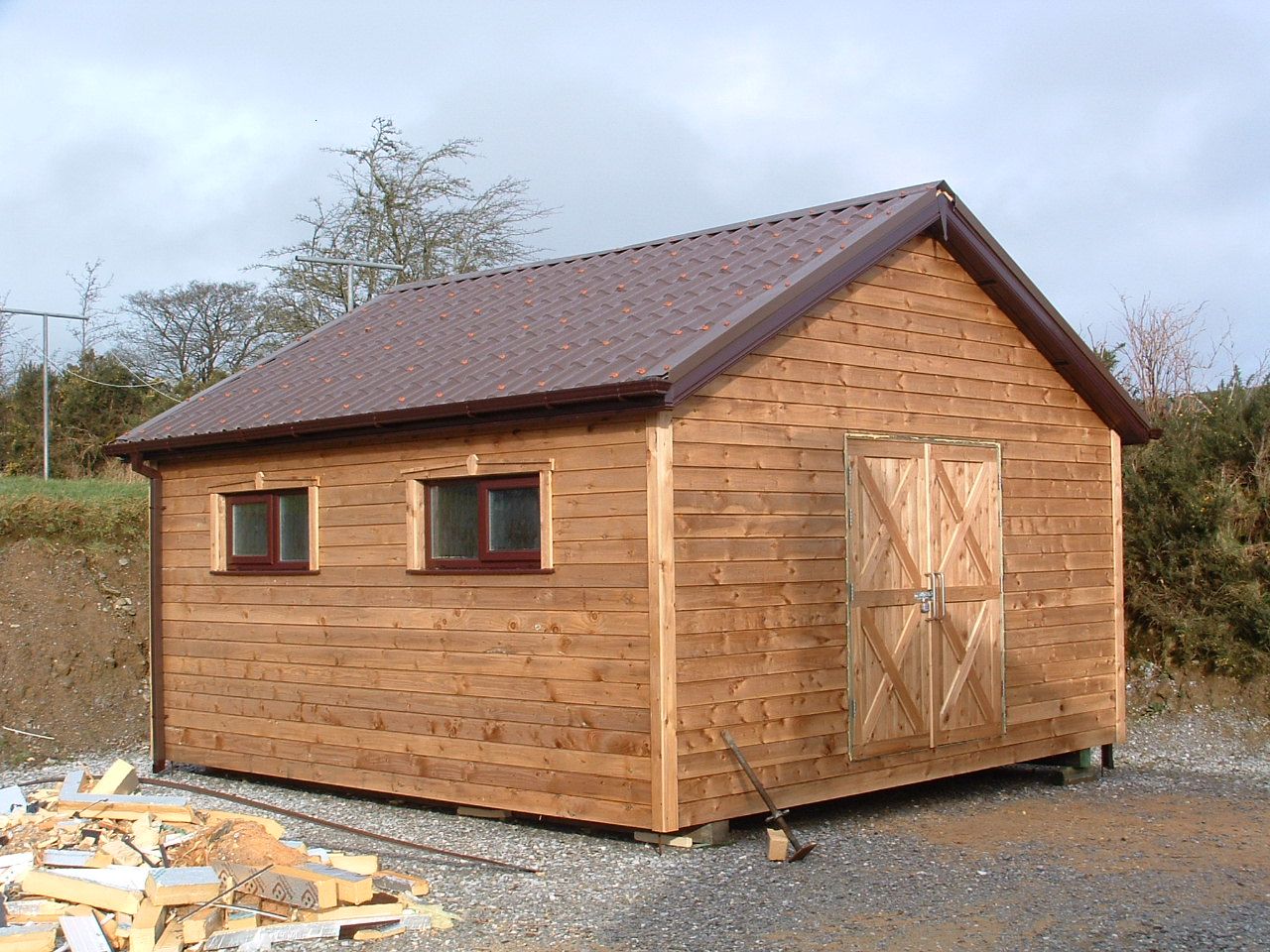

My nearly completed redwood shed.
-

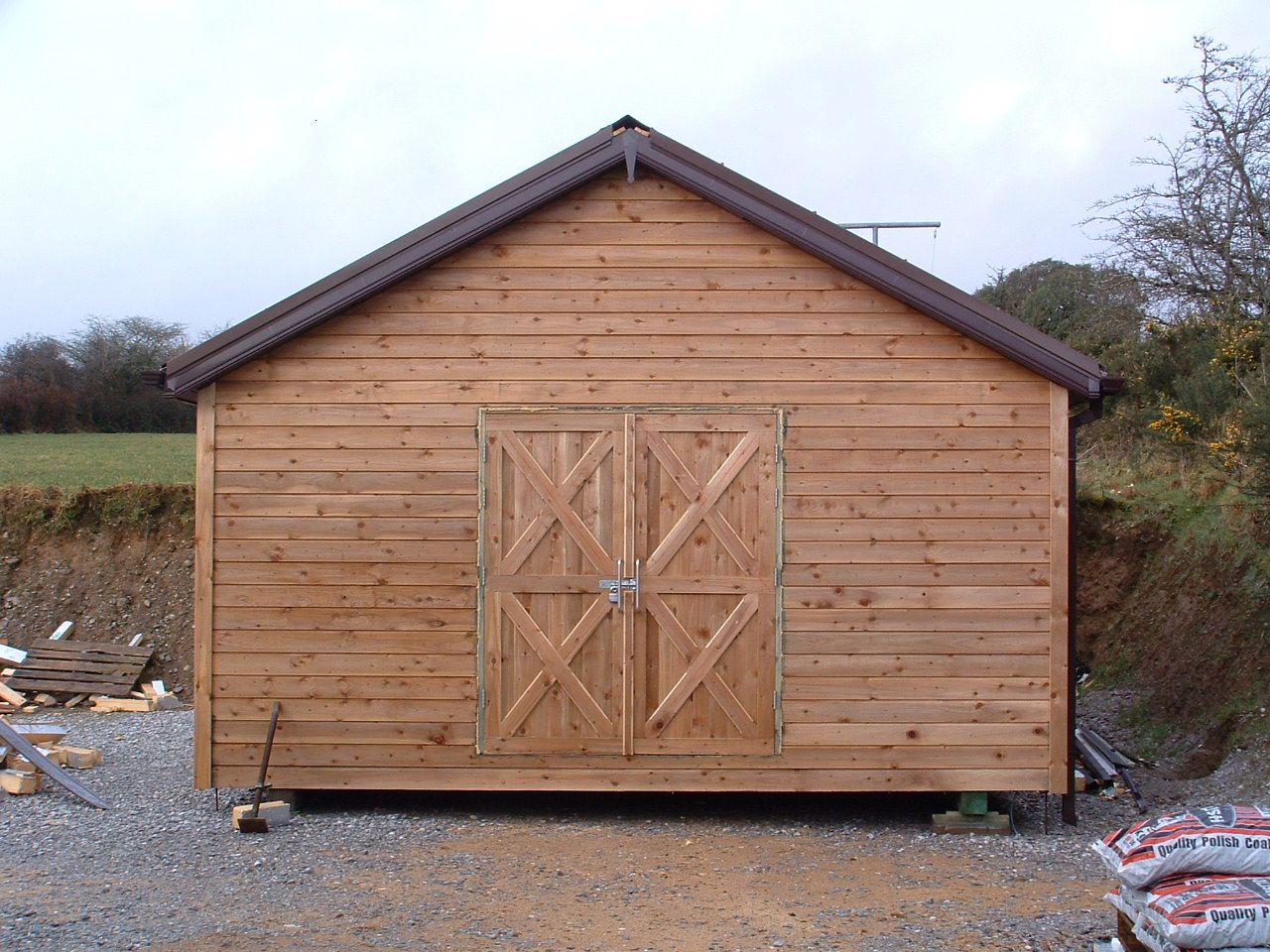

Double outswinging doors that i made myself.
-

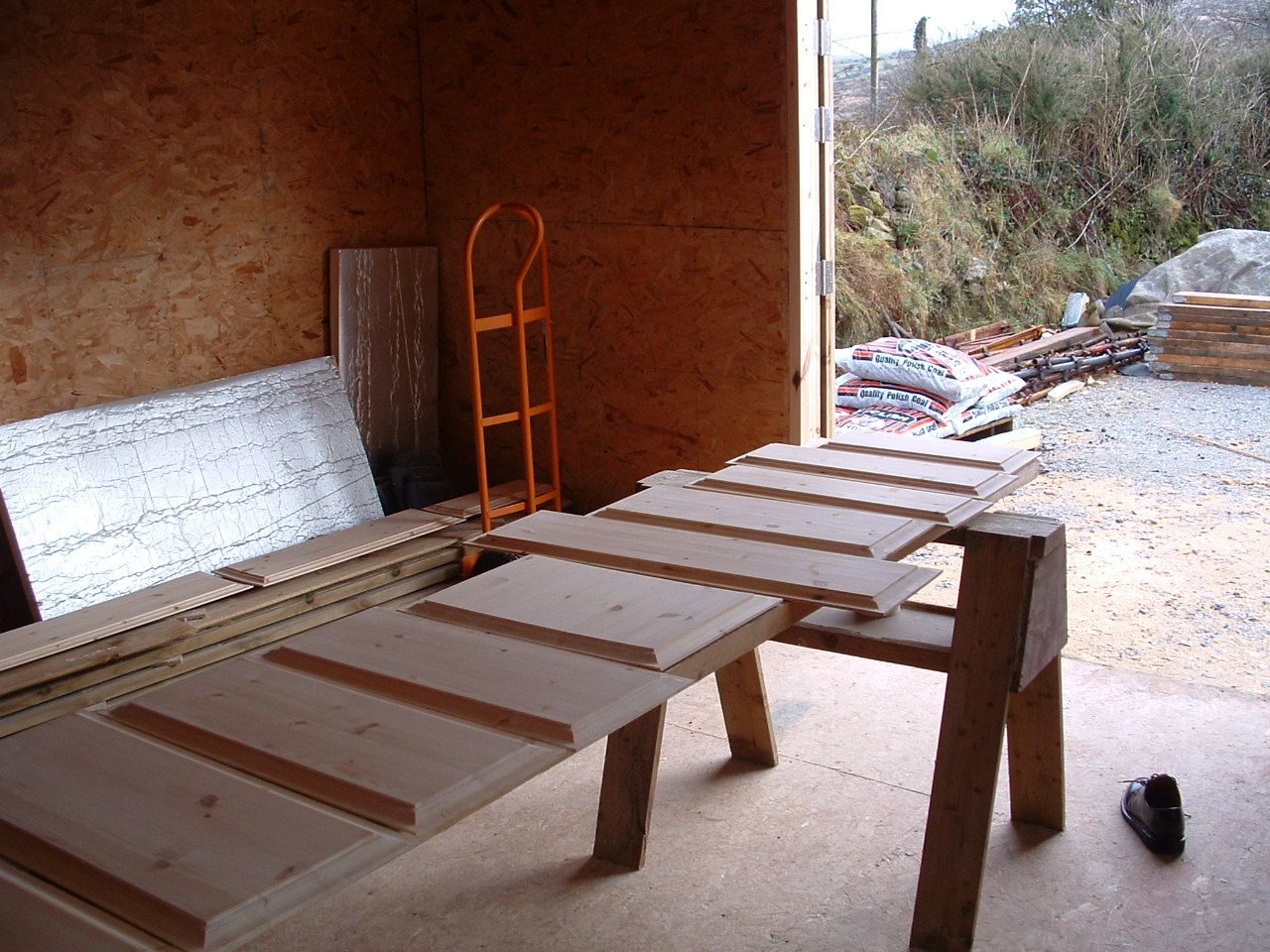

A view of one of my home made saw horses.
-

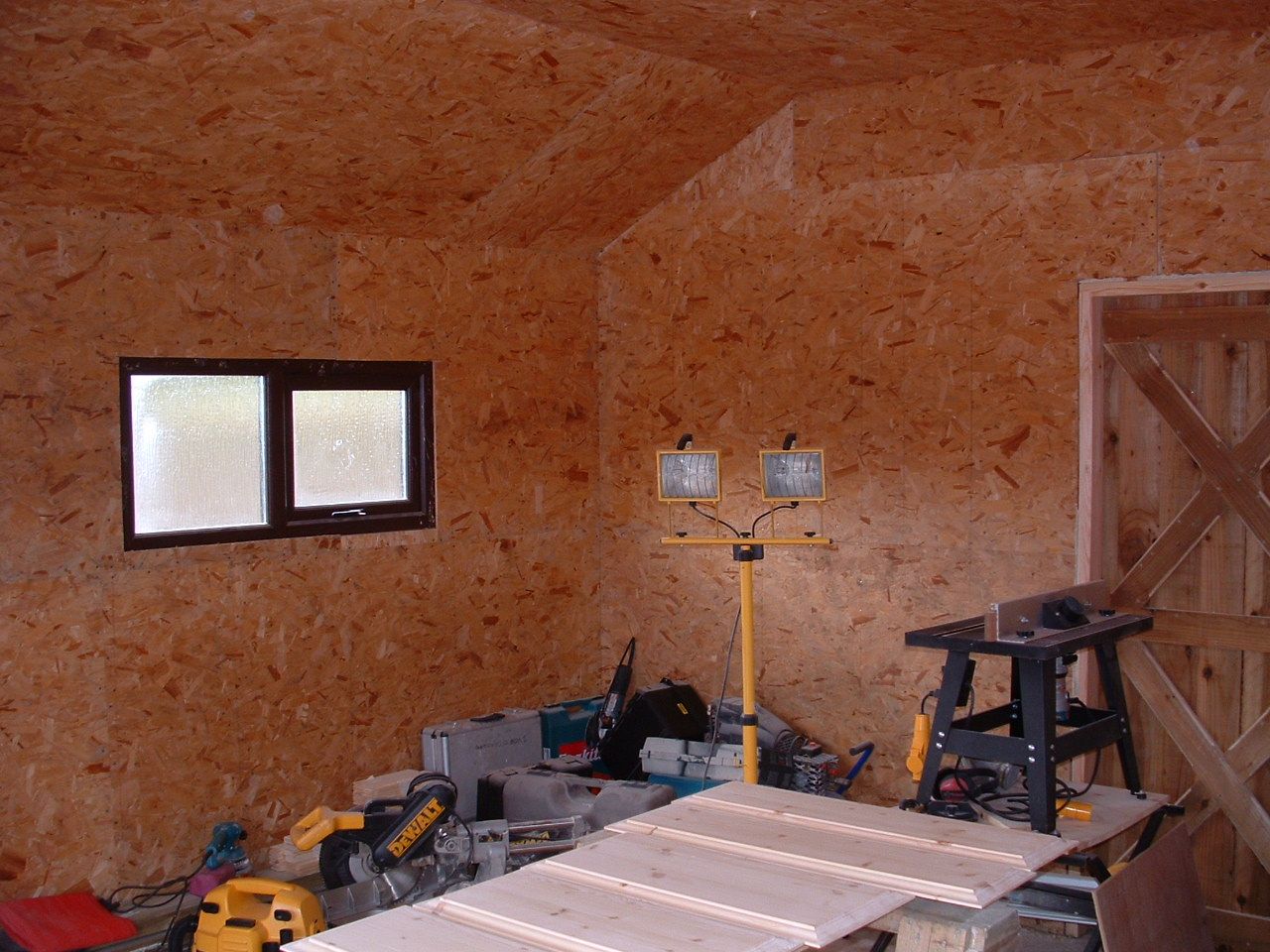

A work in progress.
View Comments
Great shed! I love the natural siding. What are the overall dimensions of the shed?
Kevin, the shed is roughly 18 foot long by 16 feet wide. I'll have to dig out the plans to give you a precise deminsion. Thanks for your comment.
Ivor.
great looking shed. Satisfying project no dought.Was through macroom this past october on way to waterford. Beautiful country.
mik d
Nice job! I'm about to build a similarly sized shed/shop(12X18)on skids and wonder if you're getting any bounce to the floor with just two skids. Perhaps not given you're using 7x3s on 14" centers. My plan was for three treated 6X6s evenly spaced with 2x6 floor joists.
Thanks,
Jeff
Apologies Jeff, i've been out of the loop for a while. I have a tiny bit of bounce. Nothing to worry about, an extra skid is probably a good idea with 2 by 6 joists, unless you go with heavier joists like 2 by 10's.
Thanks,
Ivor.
great work
love this and dimensions are quite comfortable
Wonderfully done
That is wonderful
Awesome work
Superb work
This is amazing
I like this
Nice
Thanks
this is great work done
great one dude
