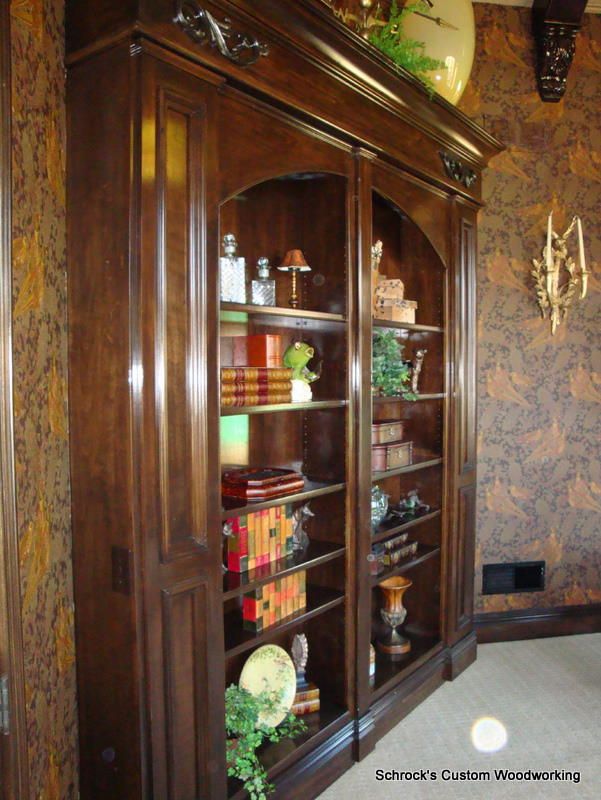

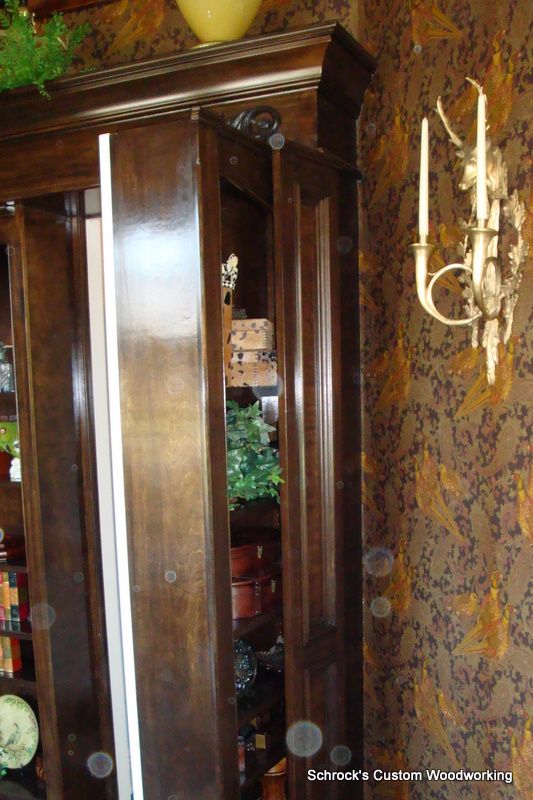

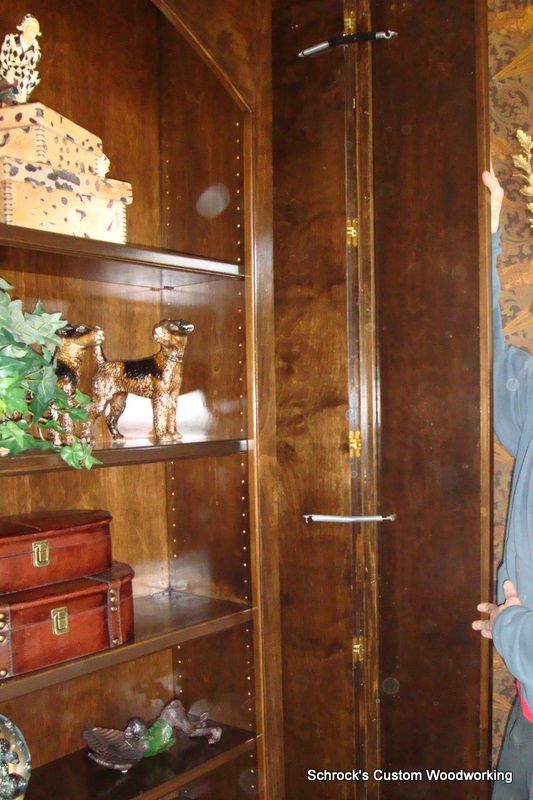

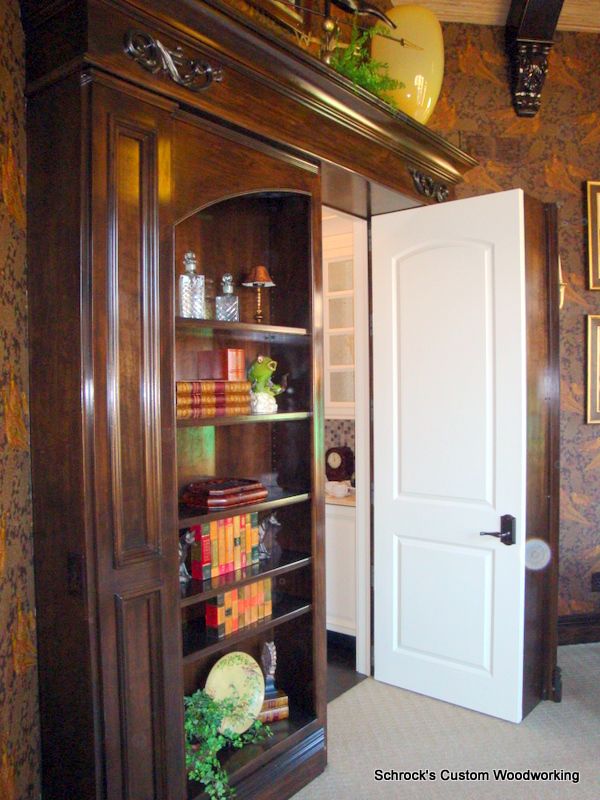

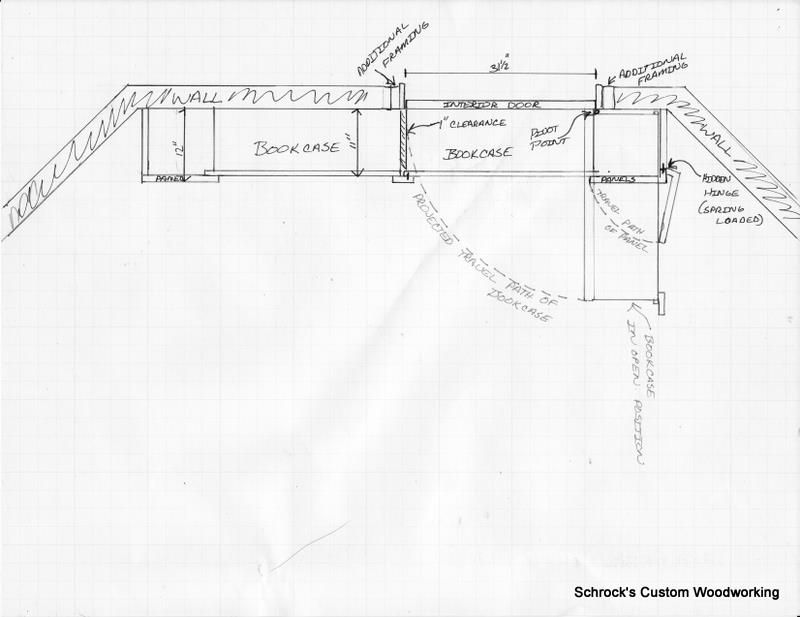

This is a custom designed swinging bookcase. The customer wanted it built on a standard interior door with the bookcase swinging out. This posed a problem of concealing the hinges of the door beside the bookcase. This was overcome by creating a second moving panel that swings out of the way to create a pocket for the bookcase to swing into.
Up Next
Video Shorts
Featured Story
Dehumidification is listed as a selling point for HPWHs, but are they actually effective at lowering humidity?
Featured Video
Video: Build a Fireplace, Brick by BrickDiscussion Forum
Highlights
"I have learned so much thanks to the searchable articles on the FHB website. I can confidently say that I expect to be a life-long subscriber." - M.K.
Video
View All Videos- FHB Podcast Segment: Control Condensation With Exterior Insulation
- FHB Podcast Segment: Building a Paintable Surface Over a Traditional Stone Wall
- FHB Podcast Segment: Advice for an Efficient and Affordable New Build
- FHB Podcast Segment: Is Foam Against Form Boards a Good Idea for a Garage Slab?
View Comments
Very nice work! What kind of hinges were used to handle the potentially very heavy load of the bookcase?
It swings on 6 - 4 1/2" ball bearing heavy duty hinges, with long screws into re-enforced framing.
Excellent design. How do you keep the secondary panel from scratching the face of the bookcase as it slides across it?
