Offset jig

By user-7174072, member

Click the "thumbs up" button above to vote for this tip. Help us choose Fine Homebuilding's top-10 window and door tips.

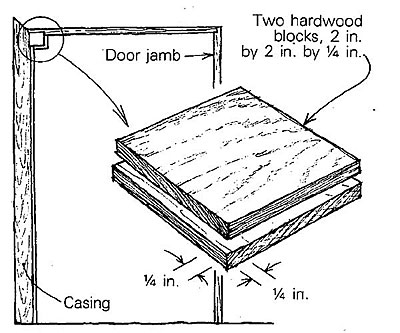

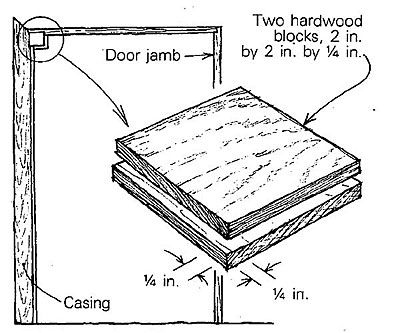

Whenever I install door or window casings, I use the jig shown here to make sure that I get an accurate 1/4-in. reveal. It’s made of two square pieces of hardwood, 1/4 in. thick, that are glued together with a 1/4-in. offset. This jig has so many corners that half the time I grab it out of my nail bag it’s in the right position for use.

John Sandstrom, Fort Dodge, IA

From Fine Homebuilding 23, pp. 14

Click the "thumbs up" button above to vote for this tip. Help us choose Fine Homebuilding's top-10 window and door tips.

View Comments

omf159 | Feb 07, 2011 02:22pm | #1
I find that masonite works better than hardwood.
Jennislav | Apr 22, 2015 12:59am | #2
Is everytime jig shown should be new?
Jennislav | Apr 22, 2015 12:59am | #3
Is everytime jig shown should be new?
Lindawise | May 26, 2015 08:02am | #4
Yeah I agree
