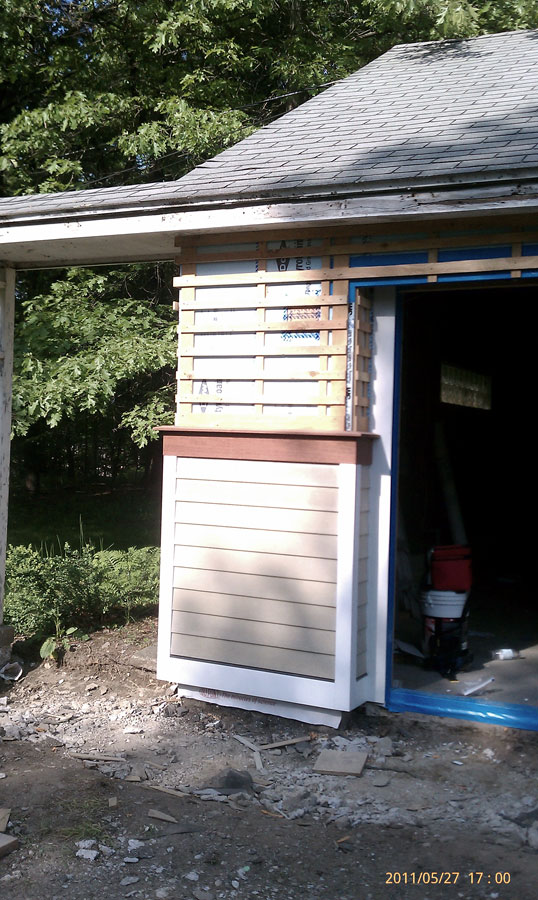

Before shingles were installed. You can see the 2 in. layer of XPS foam and the cross-hatched furring.
Would we do this furring detail again? Probably not — we think a drainage matt may have been quicker.
Fiber cement siding below, maranti water-table, and cedar shingles will go above. The inside corners, outside corners, cantilever, and multi-siding types complicated detailing here, but made it an excellent wall to use for gauging how difficult it is to install rigid foam with furring strips and siding.
Sign up for eletters today and get the latest how-to from Fine Homebuilding, plus special offers.
A different way to make vented siding.
Two layers of 3/8-in. plywood strips in a cross-hatch pattern make a drainage space and provide backing for the cedar shingles that will be installed here.
Lot's of corners to detail.
The jog in the wall shows where the double-wide overhead door was. The window cantilevers over the newly framed wall.
×
