Building Plans, Detail Drawings, and Sketchup Files from the FHB Project House

Wall section at cantilevered window, exterior foam insulation

By user-7174072, member

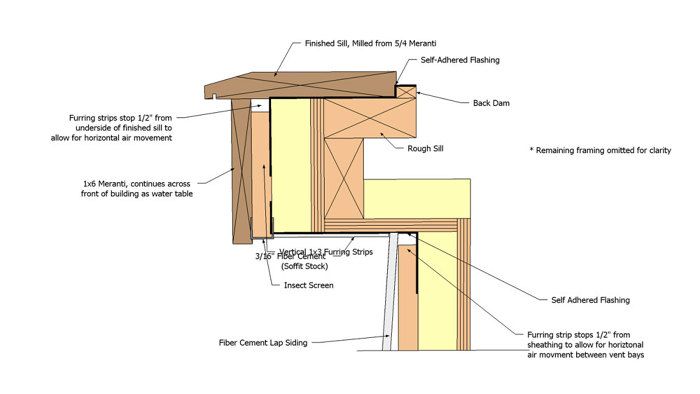

This is a 2D image of a sketchup model that Fine Homebuilding senior editor Justin used to mock up the front window in the Project House garage shop.

——————————————————
