Reader Project
Balcony / Library Ladder that can be stored in a horizontal position.
This is what I call a “balcony ladder”. It is similar to the library ladders of old.
The hinge is made from 2″ brass rail parts. The steps are held in place with 1/4″ solid brass rod that is threaded on the ends and fastened by acorn nuts with a solid brass knob backplate as the washer.
The ladder legs are 5/4″ popular that have been band sawn to create the bow. The steps are mortised into the legs.
When not in use, a piano hinged shelf on the opposite wall flips up, and after the ladder is above it, drops down to support it for horizontal storage. When people see it in this position the “Wow Factor” kicks in big time. A pulley system could be constructed using 1/4″ sash cord and pulleys to support it from the ceiling.
The braces below 3 of the steps are intended to minimize racking – 3 sets seems to be the optinum number. They are not nesessariy meant to support weight – although they do.
-

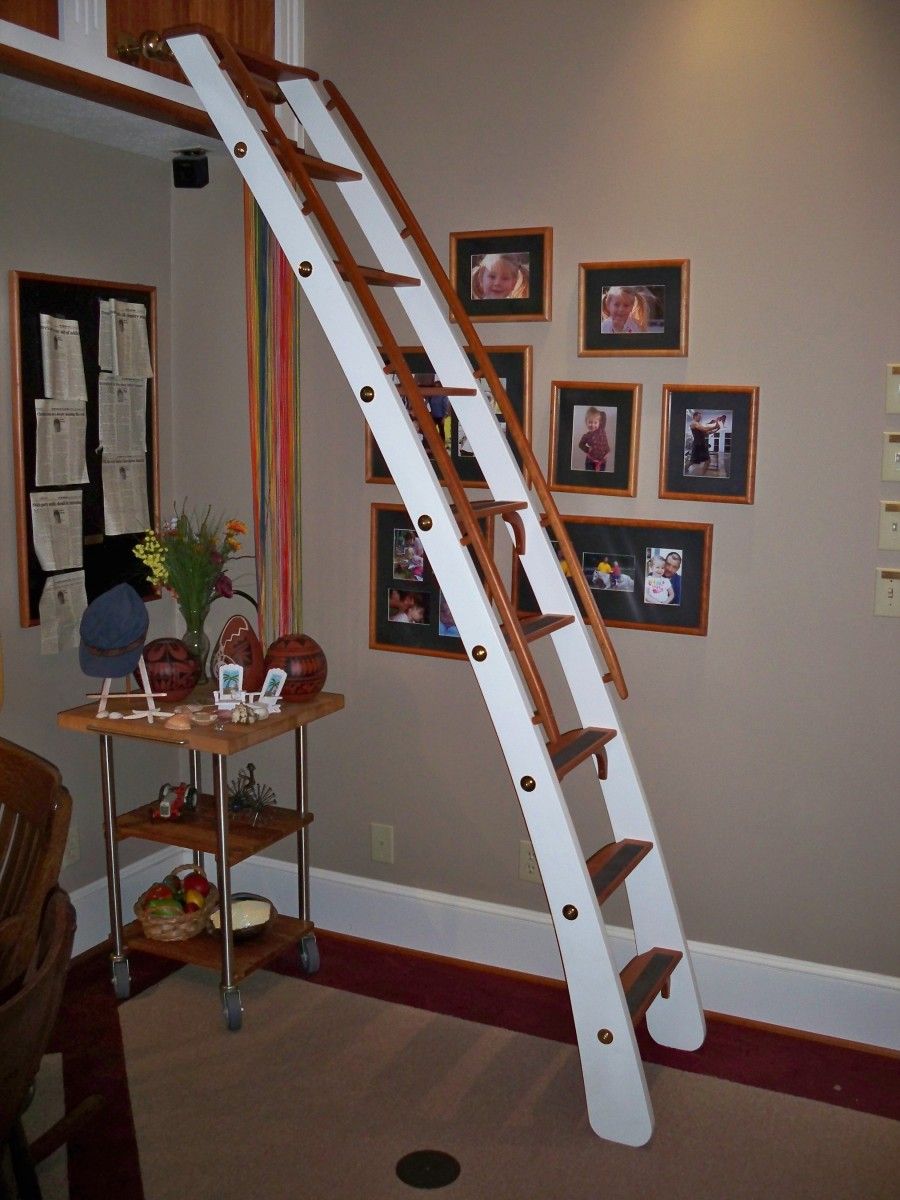

Custom made ladder that is hinged so it can be stored horizontally.
-

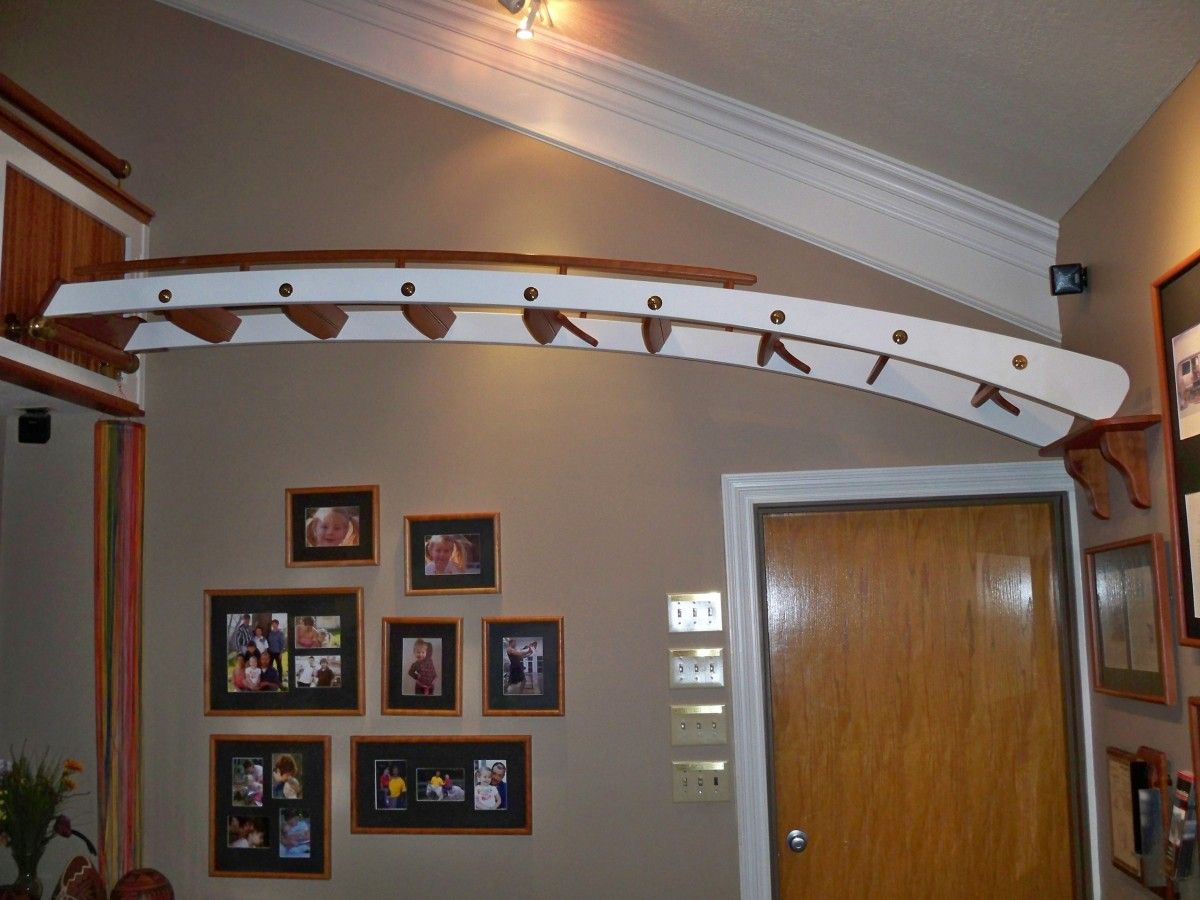

Ladder in it's stored position.
-

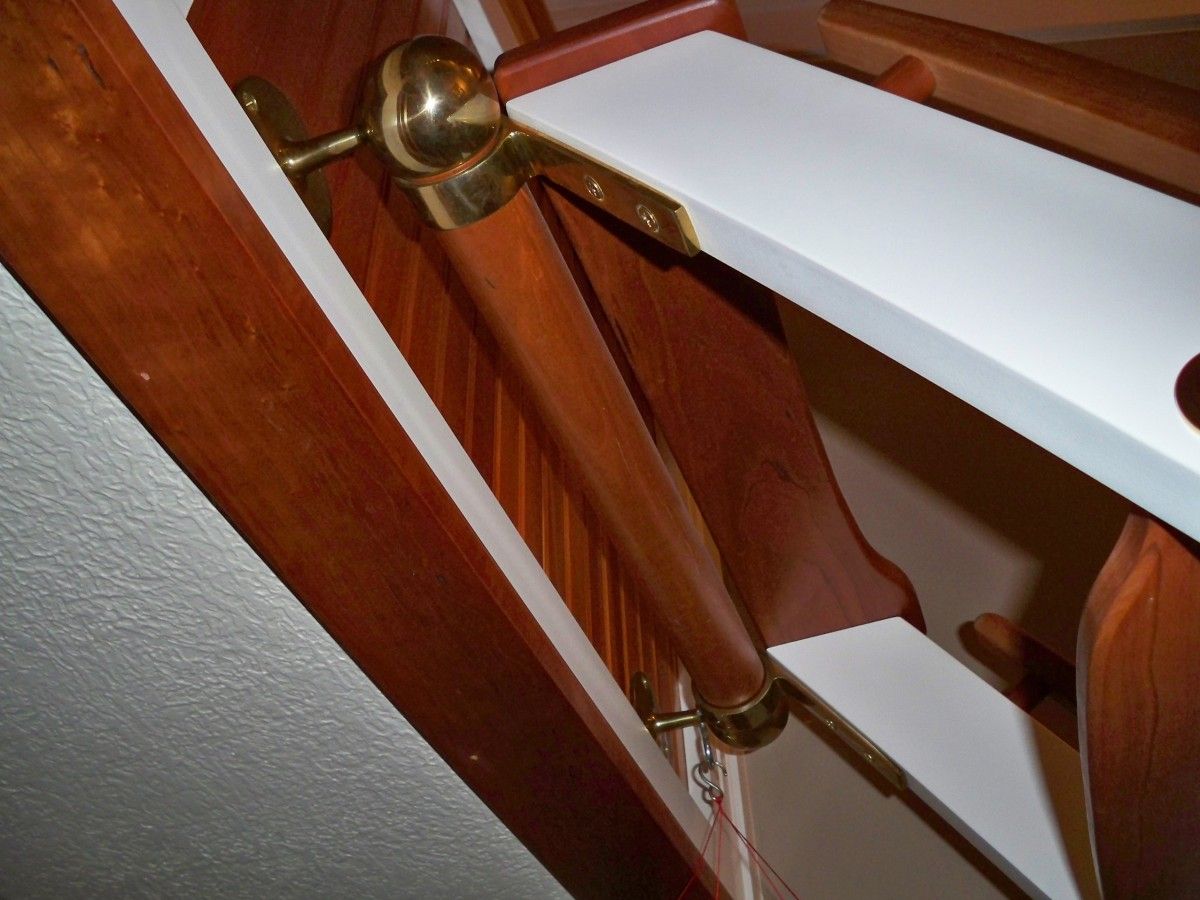

The hinge is made from 2" brass rail parts.
-

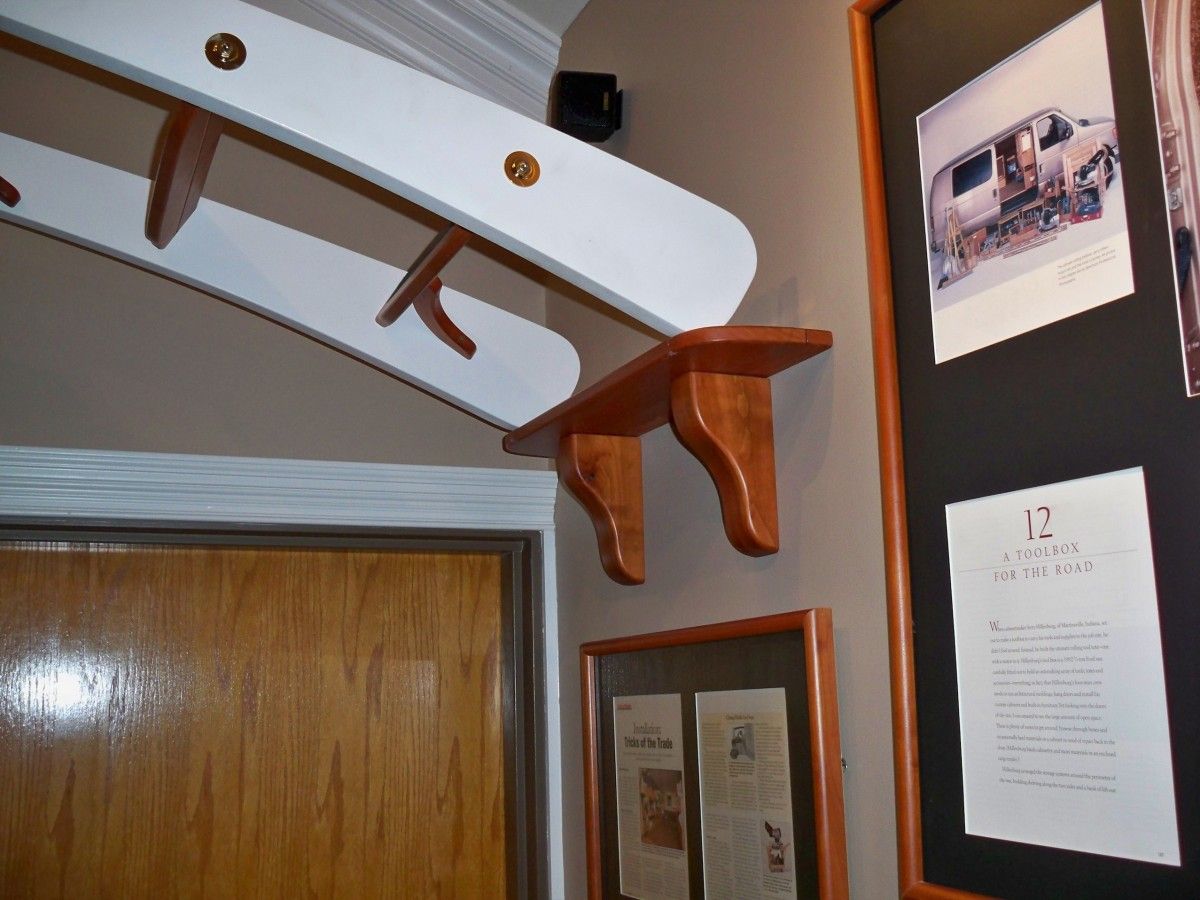

When not in use a hinged shelf on the opposite wall supports it for horizontal storage. A pulley system could be constructed using 1/4" sash cord and pulleys to support it from the ceiling.
-

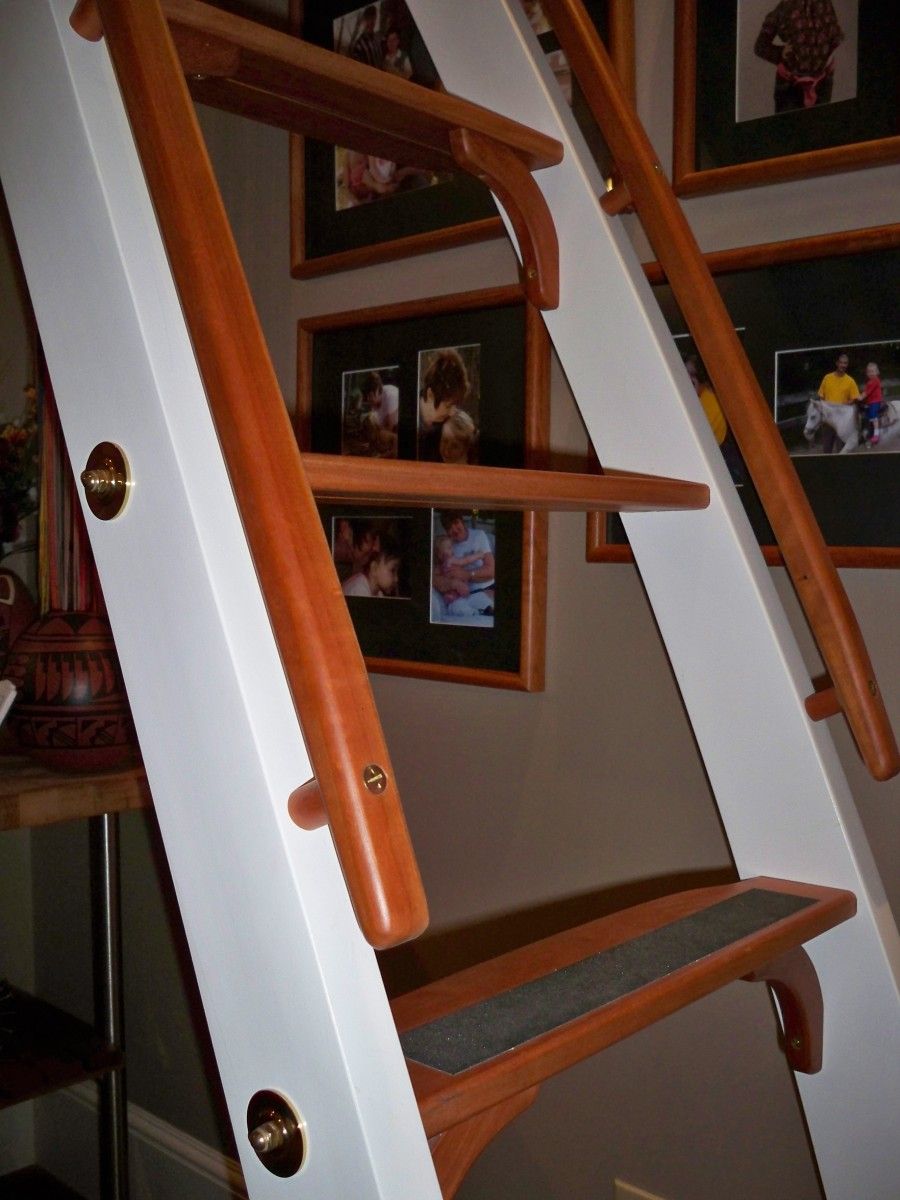

The steps are held in place with 1/4" solid brass rod that is threaded on the ends and fastened by acorn nuts with a solid brass knob backplate as the washer.
